2004 Infiniti QX56 AWDFACTORY OEM SERVICE PROCEDURE

Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

RESISTANCE CHECKING CONDITION

Intake air temperature °C (°F)	Resistance kΩ
25 (77)	1.9-2.1

If NG, replace mass air flow sensor (with intake air temperature sensor).

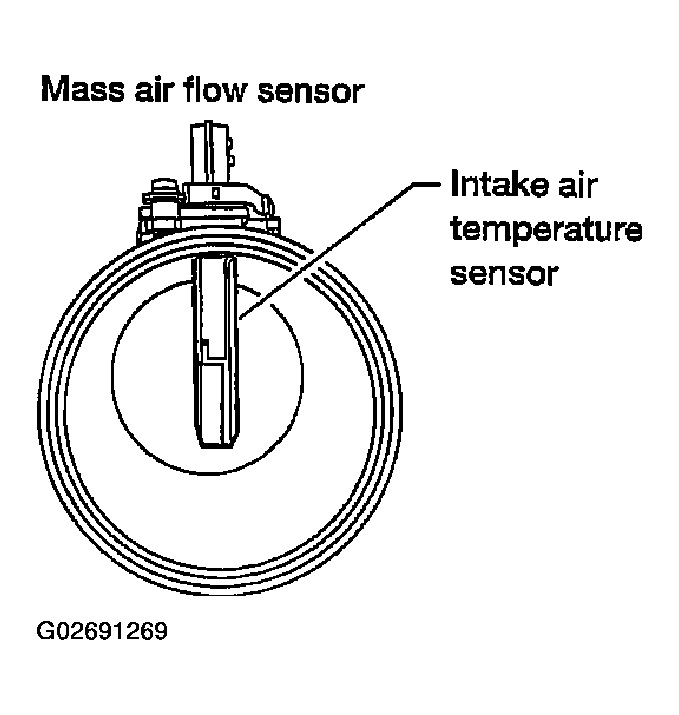

Fig 1: Locating Intake Air Temperature Sensor & Mass Air Flow Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
