2004 Infiniti QX56 AWDFACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature Sensor

  1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

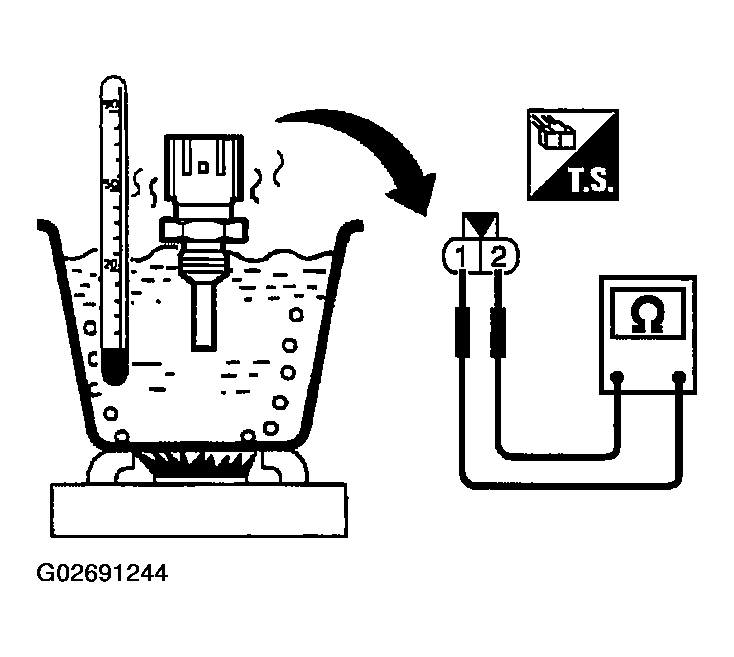

    Fig 1: Checking Resistance Between Engine Coolant Temperature Sensor Terminals 1 & 2
    G02691244Courtesy of NISSAN MOTOR CO., U.S.A.
    REFERENCE DATA

    Engine coolant temperature Β°C (Β°F) Voltage(1) V Resistance kΞ©
    20 (68) 3.5 2.1 - 2.9
    50(122) 2.2 0.68 - 1.00
    90(194) 0.9 0.236 - 0.260
    (1) This data is reference value and is measured between ECM terminal 73 (Engine coolant temperature sensor) and ground.
  2. If NG, replace engine coolant temperature sensor.

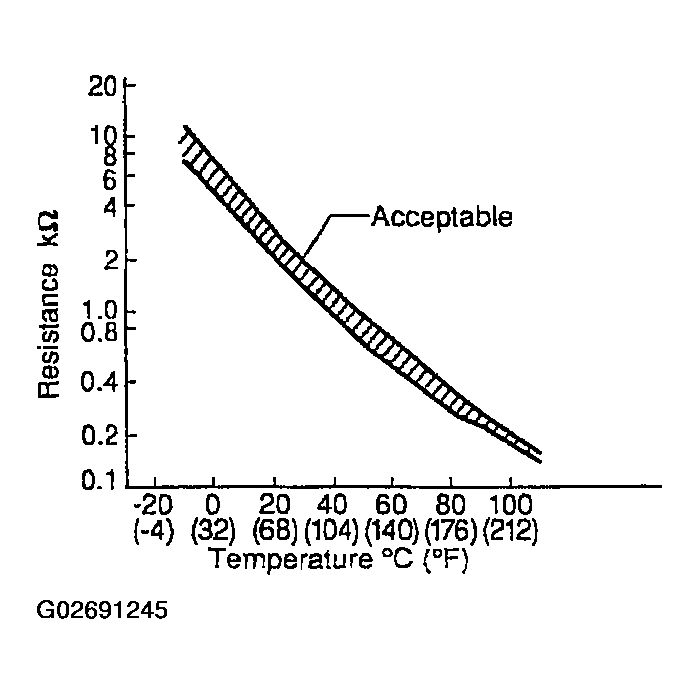

    Fig 2: DTC P0117, P0118 ECT Sensor - Temperature/Resistance Graph
    G02691245Courtesy of NISSAN MOTOR CO., U.S.A.
