2004 Infiniti Q45FACTORY OEM SERVICE PROCEDURE
ECM Terminals And Reference Value: Preparation

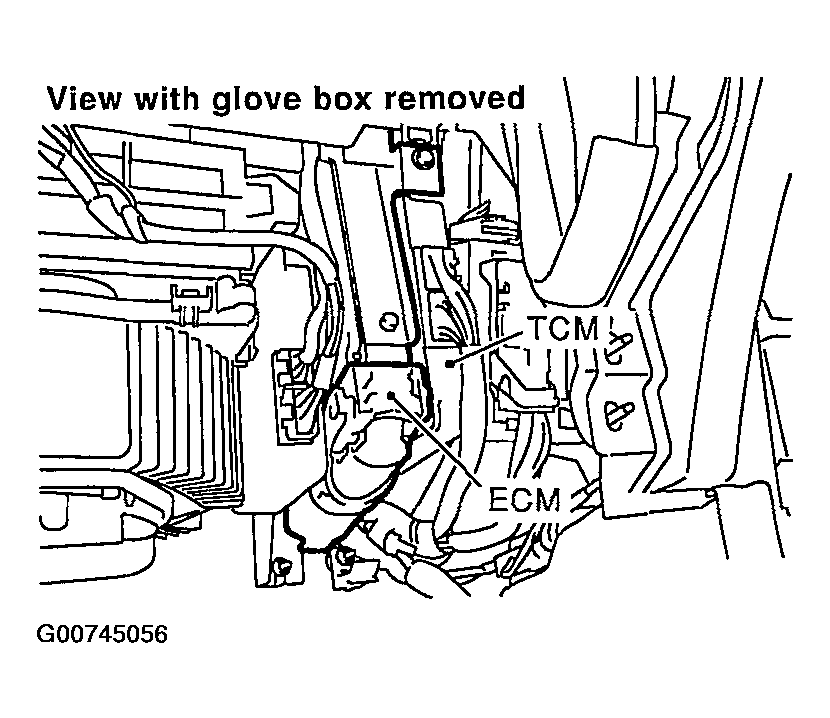

- ECM is located behind the glove box. For this inspection, remove glove box.
- Remove ECM harness protector.

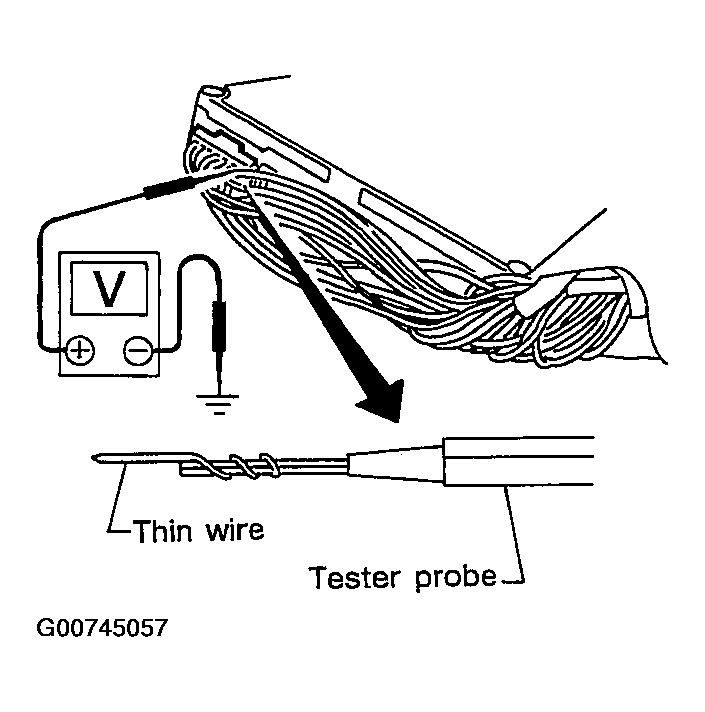

- Perform all voltage measurements with the connector connected. Extend tester probe as shown to perform tests easily.
- Open harness securing clip to make testing easier.
- Use extreme care not to touch 2 pins at 1 time.
- Data is for comparison and may not be exact.
