Inspection Procedure
- Turn ignition switch OFF.

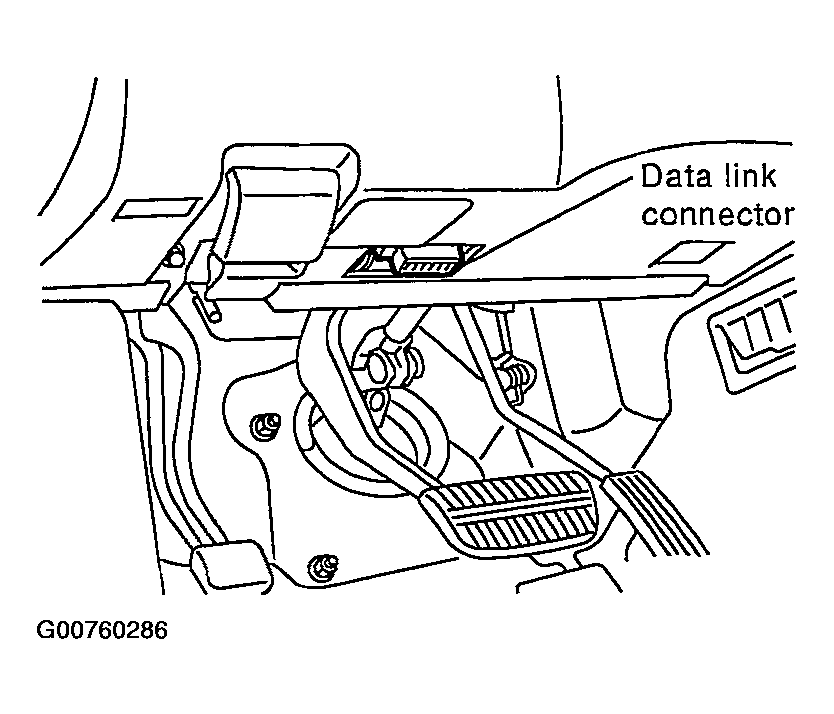

- Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the fuse box cover.
- Turn ignition switch ON.
- Touch "START (NISSAN BASED VHCL)".
- Touch "ENGINE".
If "ENGINE" is not indicated, go to COMPUTER DATA LINES or CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
- Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual.
