2004 Infiniti Q45FACTORY OEM SERVICE PROCEDURE
With CONSULT-II
- Attach the EVAP service port adapter securely to the EVAP service port.
- Also attach the pressure pump and hose to the EVAP service port adapter.
- Turn ignition switch ON.

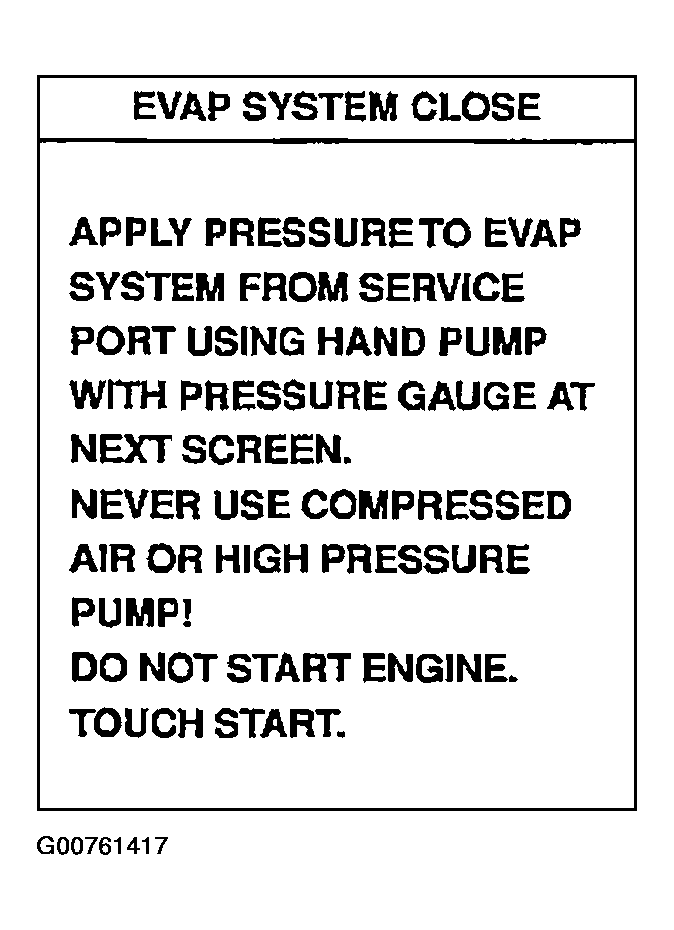

- Select the "EVAP SYSTEM CLOSE" of "WORK SUPPORT MODE" with CONSULT-II.

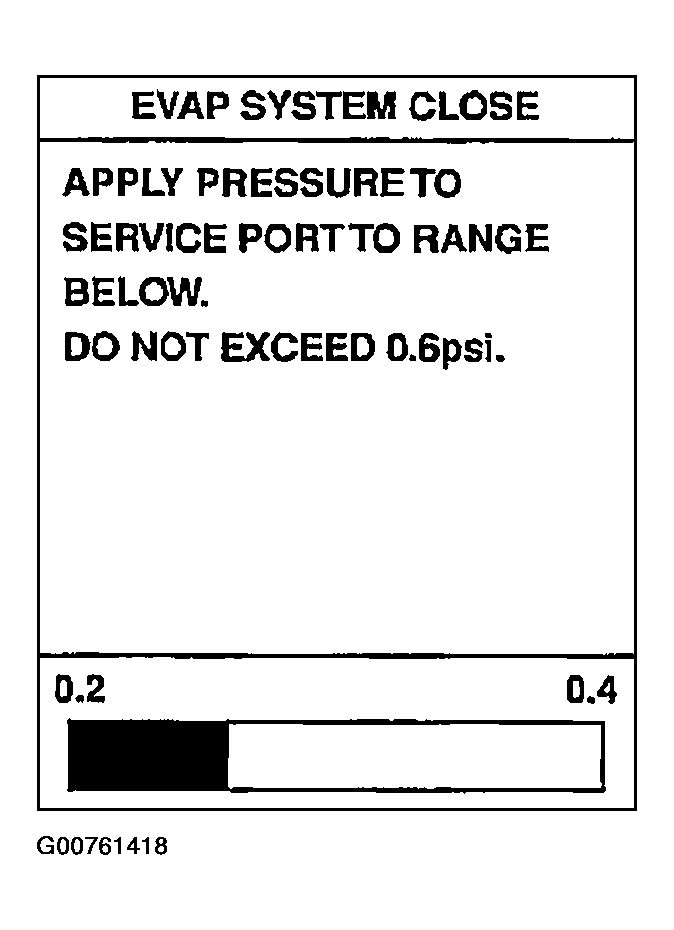

- Touch "START". A bar graph (Pressure indicating display) will appear on the screen.
- Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar graph.
- Remove EVAP service port adapter and hose with pressure pump.
- Locate the leak using a leak detector. Refer to EVAPORATIVE EMISSION LINE DIAGRAM .
