With CONSULT-II
- Start engine and warm it up to normal operating temperature.
- Select "DATA MONITOR" mode with CONSULT-II.
- Hold engine speed at 2,000 RPM and check one of the following.
- "HO2S1 (B1)/(B2)" voltage should go above 0.70V at least once.
- "HO2S1 (B1)/(B2)" voltage should go below 0.21V at least once.
If the check result is NG, perform Diagnostic Procedure .
If the check result is OK, perform the following step.
- Let engine idle at least 5 minutes.

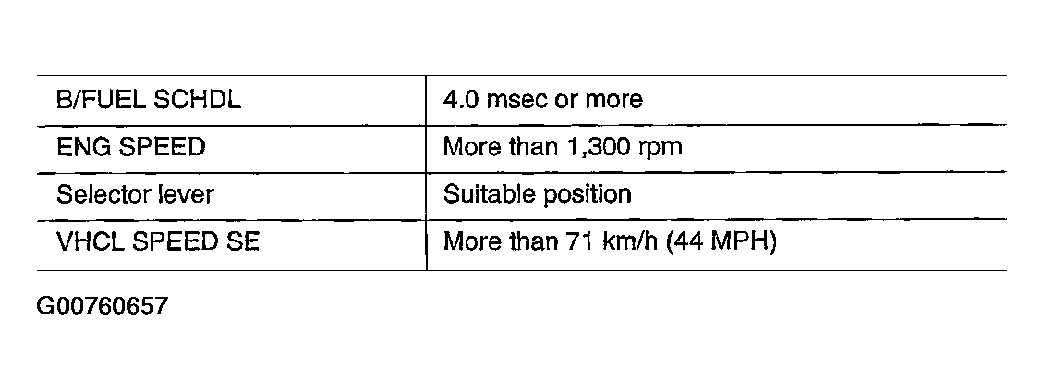

- Maintain the following condition at least 50 consecutive seconds.
During this test, P0132 and/or P0152 may be displayed on CONSULT-II screen.
- If DTC is detected, go to Diagnostic Procedure .
