2004 Infiniti Q45FACTORY OEM SERVICE PROCEDURE

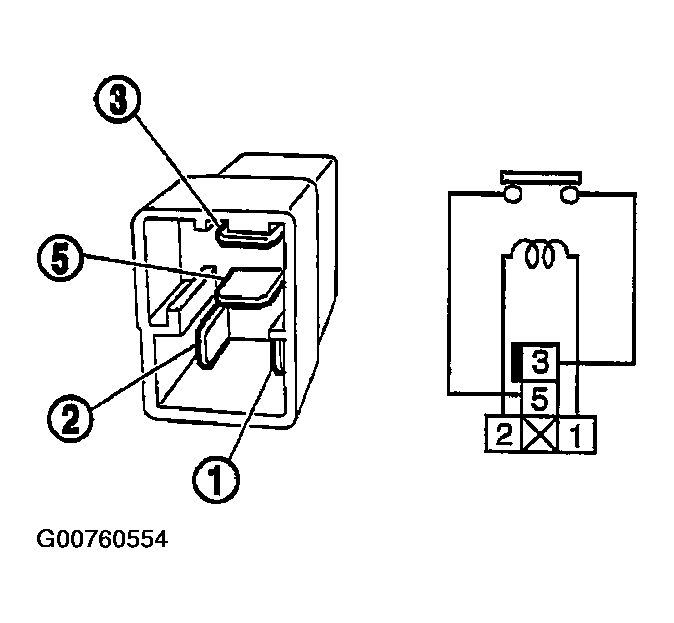

Throttle Control Motor Relay

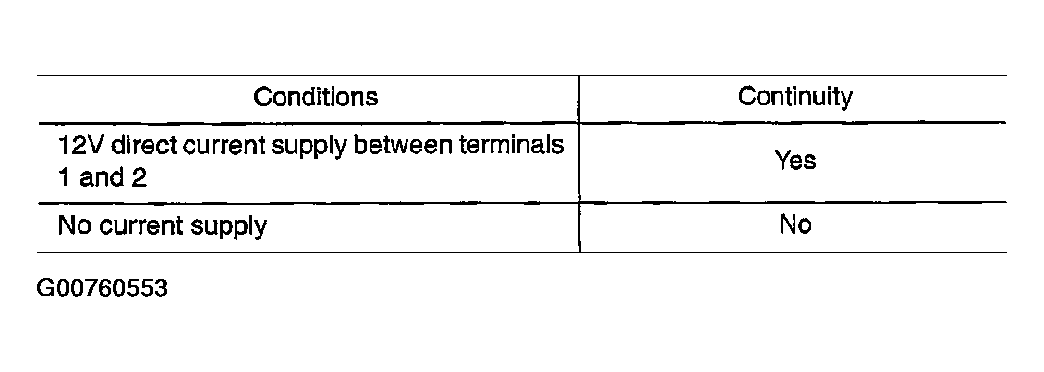

- Apply 12V direct current between relay terminals 1 and 2.
- Check continuity between relay terminals 3 and 5.
- If NG, replace throttle control motor relay.
