2004 Infiniti Q45FACTORY OEM SERVICE PROCEDURE
EVAP Control System Pressure Sensor
- Remove EVAP control system pressure sensor with its harness connector connected.
- Remove hose from EVAP control system pressure sensor.
- Install a vacuum pump to EVAP control system pressure sensor.
- Turn ignition switch ON.

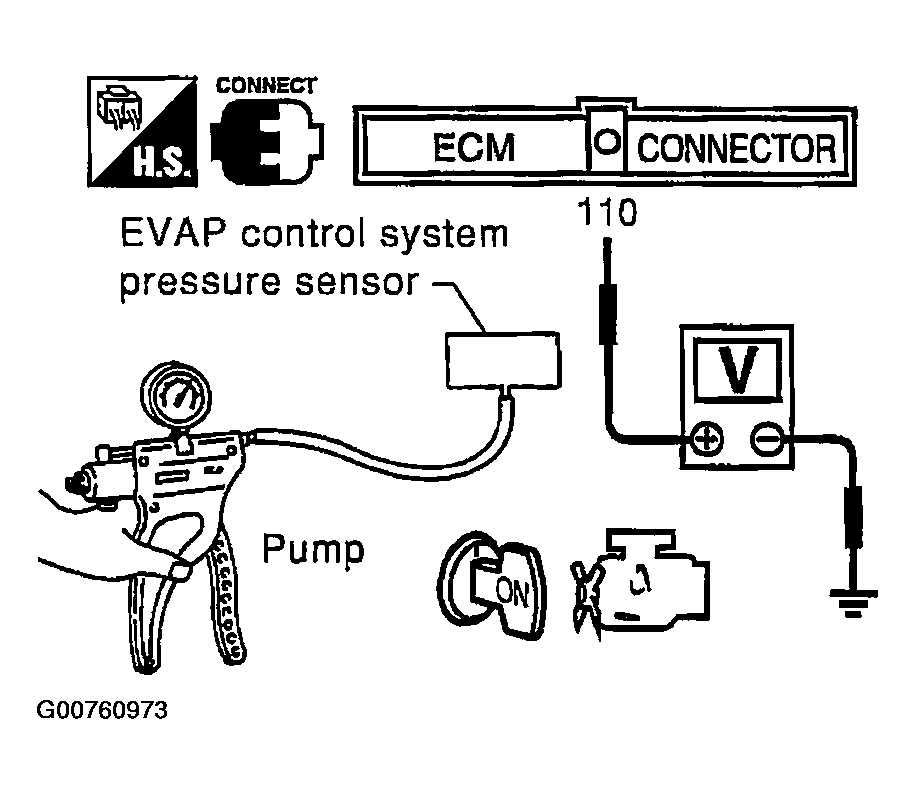

- Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.
