2004 Infiniti Q45FACTORY OEM SERVICE PROCEDURE

2. Check Purge Flow

With CONSULT-II

Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP service port and install vacuum gauge.

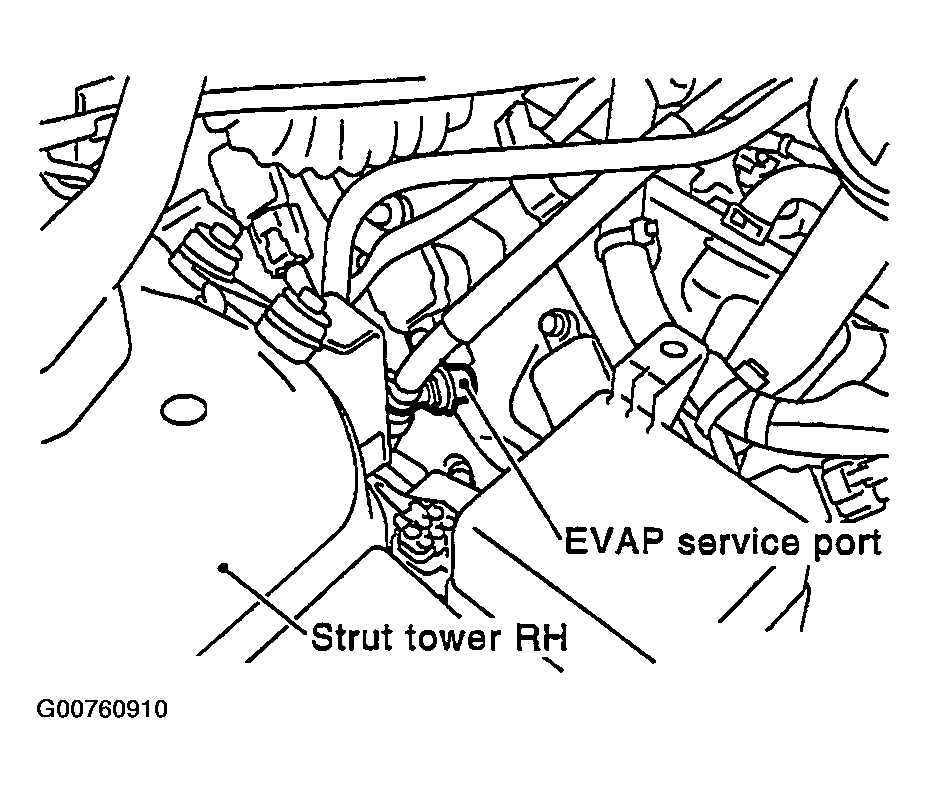

Fig 1: Locating EVAP Service Port
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and let it idle.
Select "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II.
Rev engine up to 2,000 RPM.
Touch "Qd" and "Qu" on CONSULT-II screen to adjust "PURG VOL CONT/V" opening and check vacuum existence.

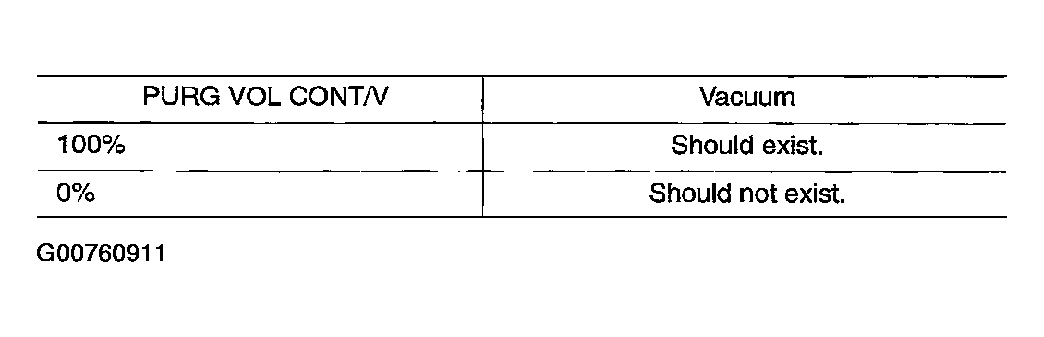

Fig 2: Checking PURG VOL CONT/V (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
