2004 Infiniti Q45FACTORY OEM SERVICE PROCEDURE
Engine Coolant Temperature Sensor

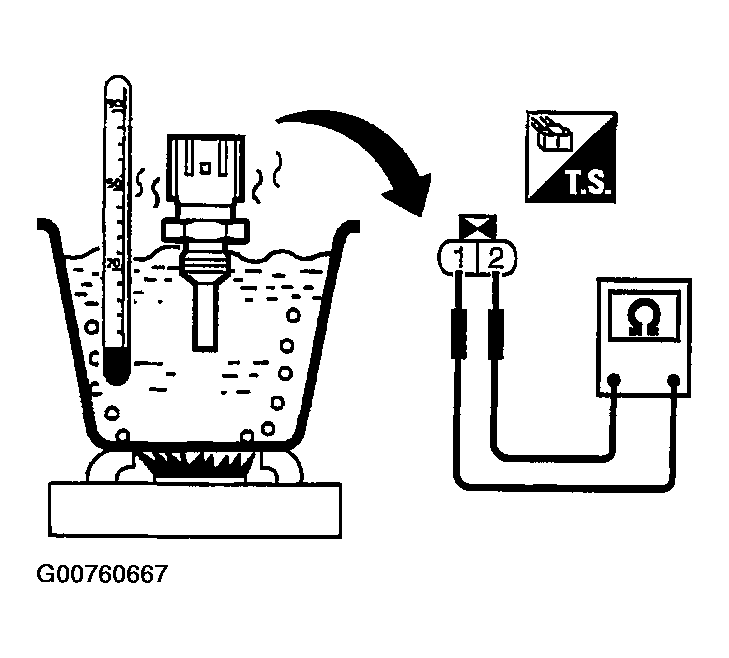

- Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
Courtesy of NISSAN MOTOR CO., U.S.A.

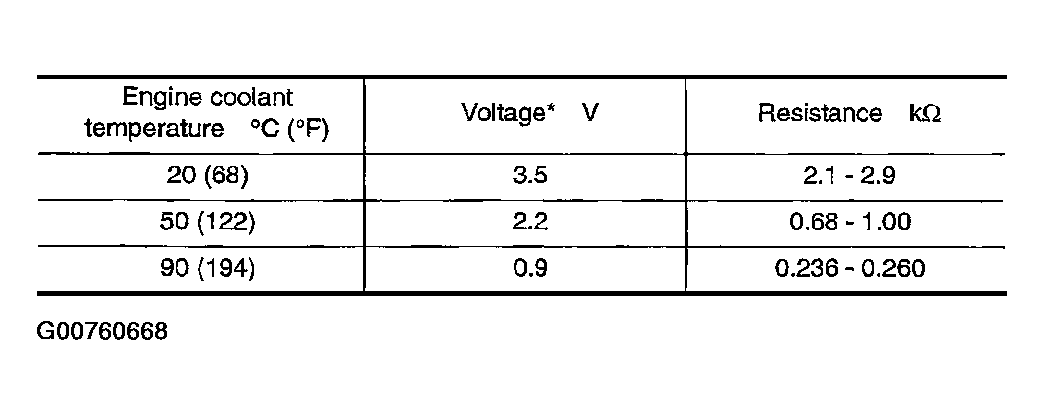

< Reference data >
