Procedure For Malfunction B
Use this procedure to check the overall function of the mass air flow sensor circuit. During this check, a DTC might not be confirmed.
With GST
- Start engine and warm it up to normal operating temperature.
- Select "MODE 1" with GST.

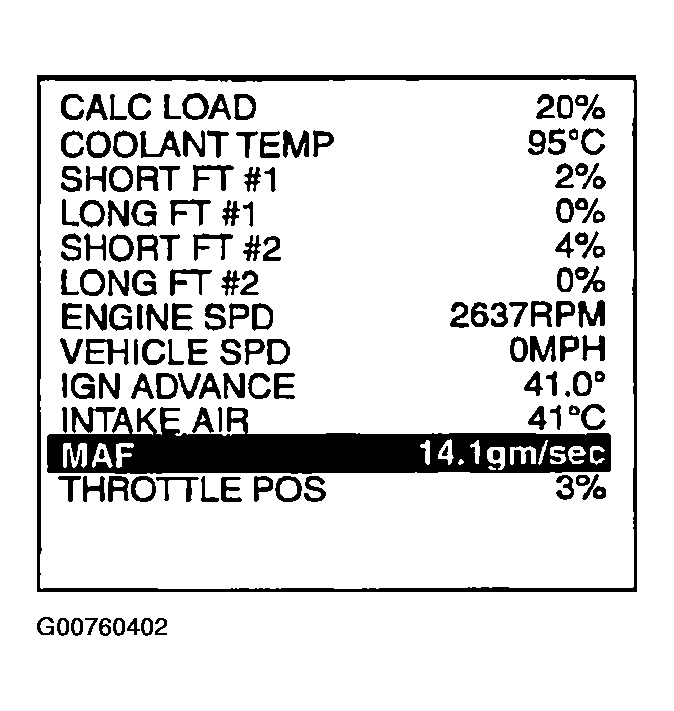

- Check the mass air flow sensor signal with "MODE 1".
- Check for linear mass air flow sensor signal value rise in response to increases to about 4,000 RPM in engine speed.
- If NG, go to DIAGNOSTIC PROCEDURE .
