2004 Infiniti Q45FACTORY OEM SERVICE PROCEDURE

Intake Valve Timing Control Position Sensor

Disconnect intake valve timing control position sensor harness connector.
Loosen the fixing bolt of the sensor.
Remove the sensor.
Visually check the sensor for chipping.

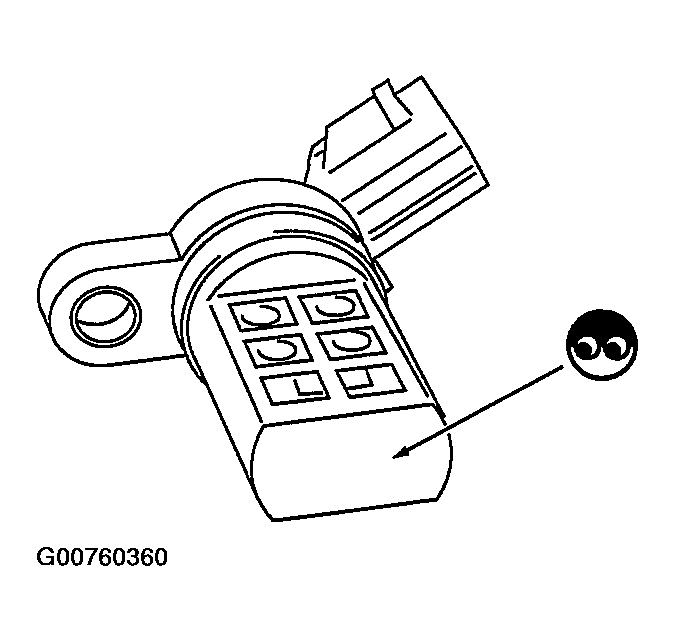

Fig 1: Checking INTAKE VALVE TIMING CONTROL POSITION SENSOR
Courtesy of NISSAN MOTOR CO., U.S.A.
Check resistance as shown below.

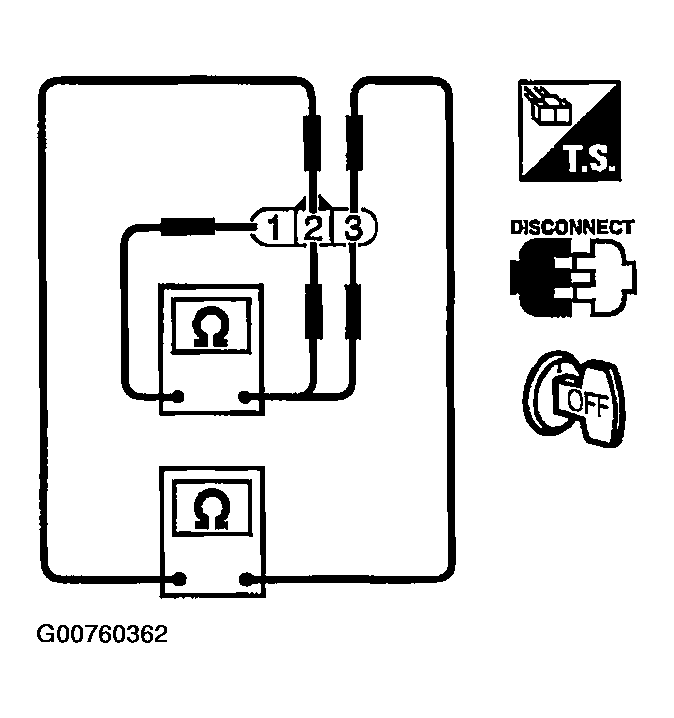

Fig 2: Checking Intake Valve Timing Control Position Sensor Resistance (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace intake valve timing control position sensor.

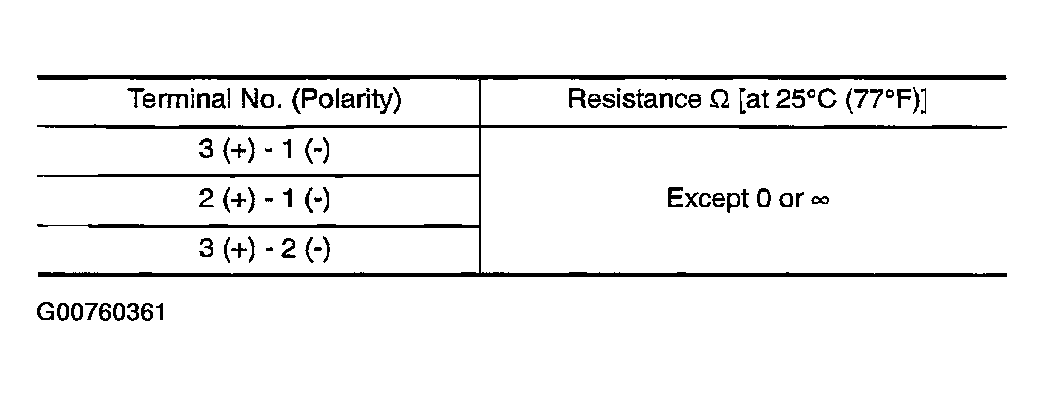

Fig 3: Checking Intake Valve Timing Control Position Sensor Resistance (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
