2004 Infiniti Q45FACTORY OEM SERVICE PROCEDURE

Passenger Door Control Unit Circuit Check

  1. POWER SUPPLY CIRCUIT CHECK
    1. Turn ignition switch OFF.
    2. Disconnect passenger door control unit connector.
    3. Check voltage between passenger door control unit connector D39 terminal 6 and ground.
      1. 6 (W/R) - Ground: Battery voltage

      OK or NG

      1. OK: GO TO 2.
      2. NG: Check the following.
        • 40A fusible link (letter H. located in fuse and fusible link box).
        • Harness for open or short between passenger door control unit and fuse.

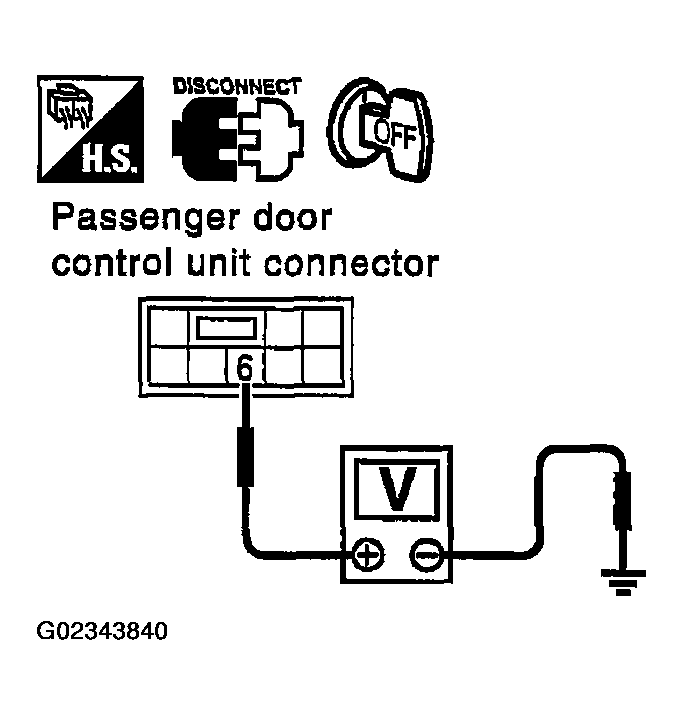

    Fig 1: Checking Voltage Between Passenger Door Control Unit Connector D39 Terminal 6 And Ground
    G02343840Courtesy of NISSAN MOTOR CO., U.S.A.
  2. GROUND CIRCUIT CHECK

    Check continuity between passenger door control unit connector D39 terminal 7 and ground.

    1. 7 (B) - Ground: Continuity should exist.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace harness.

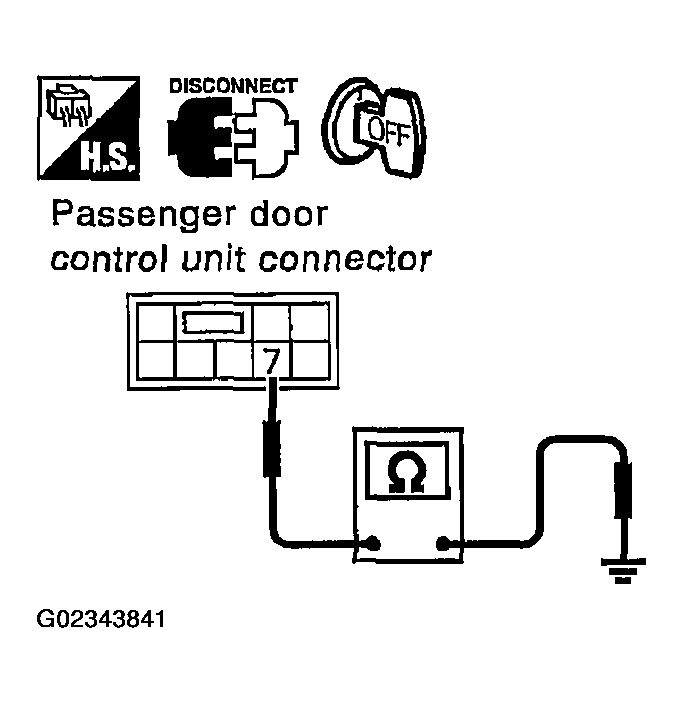

    Fig 2: Checking Continuity Between Passenger Door Control Unit Connector D39 Terminal 7 And Ground
    G02343841Courtesy of NISSAN MOTOR CO., U.S.A.
  3. COMMUNICATION CIRCUIT CHECK
    1. Disconnect driver door control unit connector.
    2. Check continuity between driver door control unit connector D8 terminal 5 and passenger door control unit connector D38 terminal 11.
      1. 5 (G/OR) -11 (G/OR): Continuity should exist.

      OK or NG

      1. OK: INSPECTION END.
      2. NG: Repair or replace harness between door control unit and passenger door control unit.

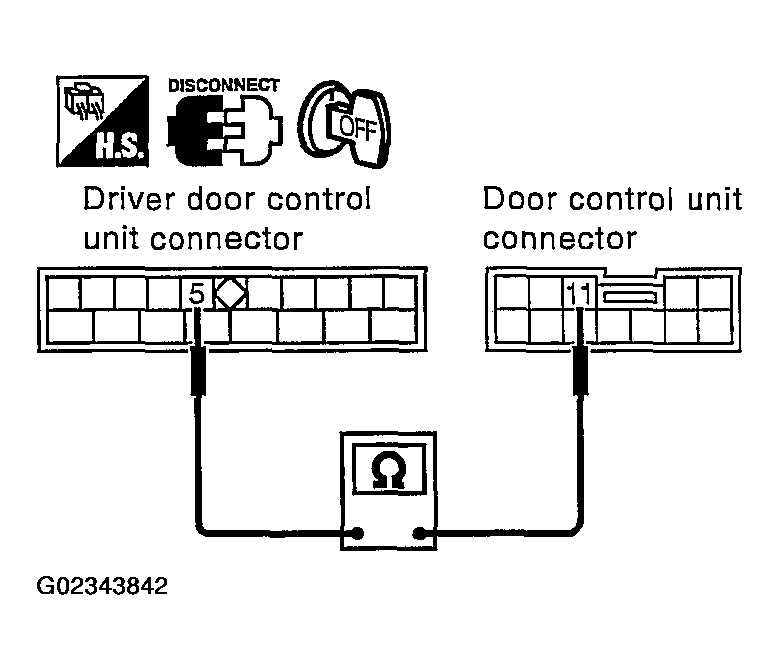

    Fig 3: Checking Continuity Between Driver Door Control Unit Connector D8 Terminal 5 And Passenger Door Control Unit Connector D38 Terminal 11
    G02343842Courtesy of NISSAN MOTOR CO., U.S.A.
