CAUTION: After completing installation, check A/T fluid leakage and A/T fluid level. Refer to " A/T FLUID -Changing A/T Fluid" , " A/T FLUID -Checking A/T Fluid" .

Install A/T fluid temperature sensor 2 in bracket.

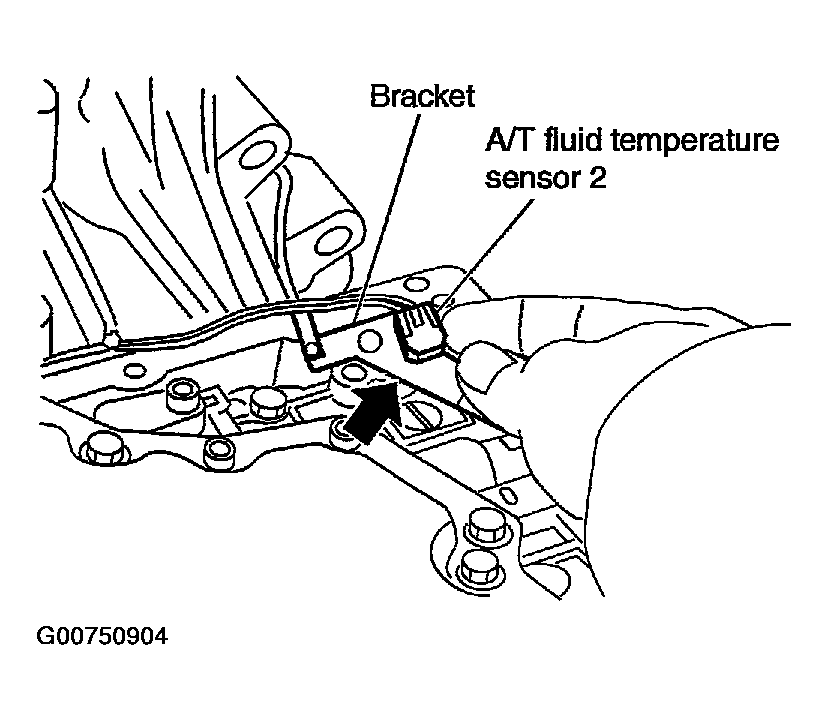

Fig 1: Installing A/T Fluid Temperature Sensor 2 Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 in control valve assembly. (With bracket.)
1. :7.9 N.m (0.81 kg-m, 70 in-lb)

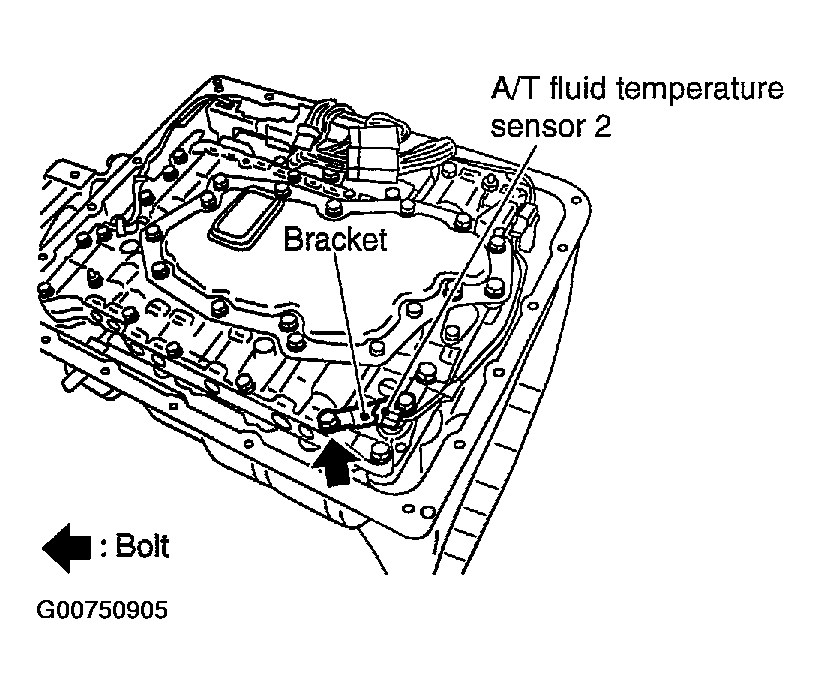

Fig 2: Locating A/T Fluid Temperature Sensor 2 Connector & Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve assembly.
1. Install control valve assembly in transmission case.
  CAUTION:
  - Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve assembly.
  - Make sure that turbine sensor securely installs turbine sensor hole.

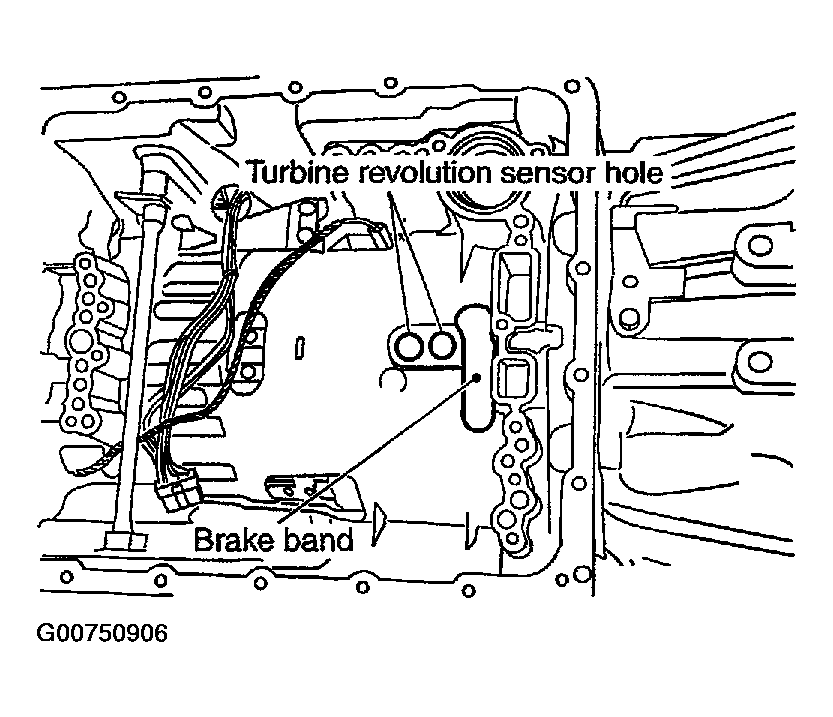

    Fig 3: Locating Turbine Sensor Hole & Brake Band
    Courtesy of NISSAN MOTOR CO., U.S.A.
  - Assemble it so that manual valve cutout is engaged with manual plate projection.
