2004 Infiniti M45FACTORY OEM SERVICE PROCEDURE
With CONSULT-II
- Reconnect harness connectors disconnected.
- Turn ignition switch ON.

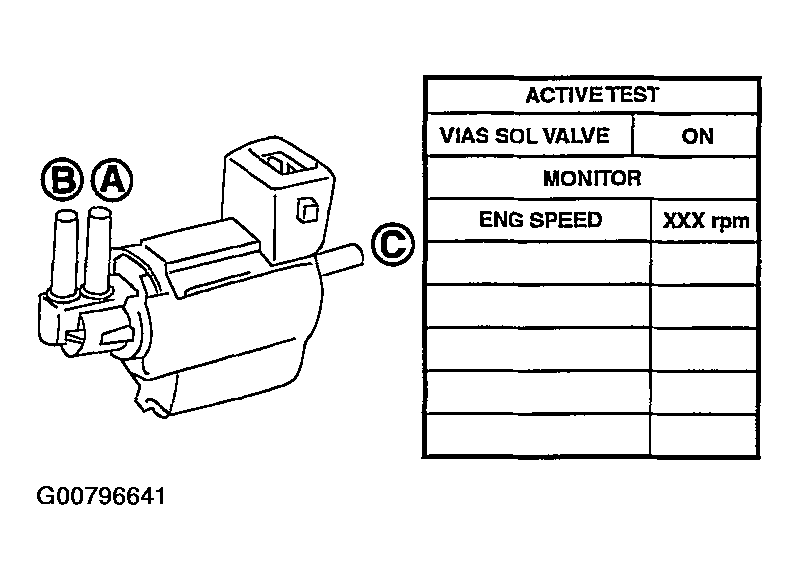

- Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.

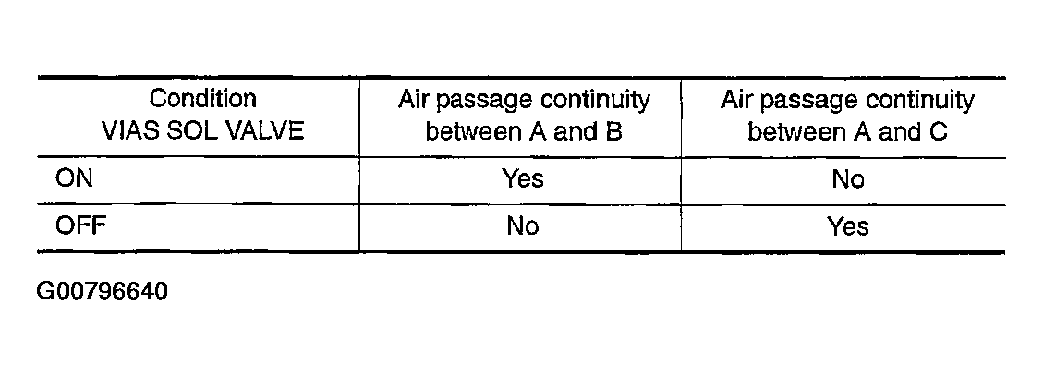

- Check air passage continuity and operation delay time under the following conditions.
Operation takes less than 1 second.
