2004 Infiniti M45FACTORY OEM SERVICE PROCEDURE

With CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.

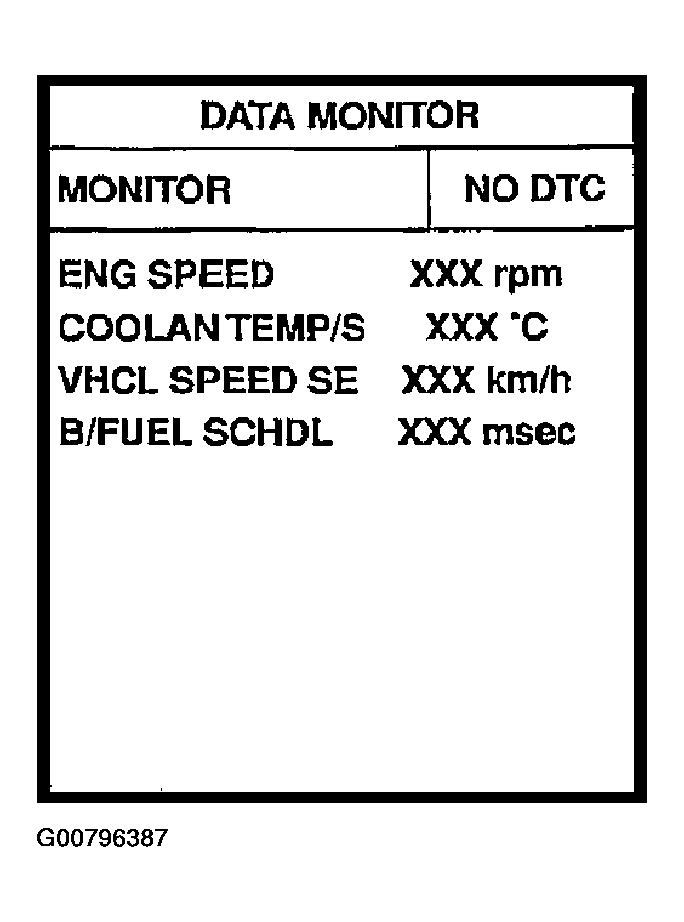

Fig 1: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that "COOLAN TEMP/S" indicates less than 70°C (158°F). If not, cool down the engine.
Start engine.
Hold vehicle at the following conditions for 12 seconds.

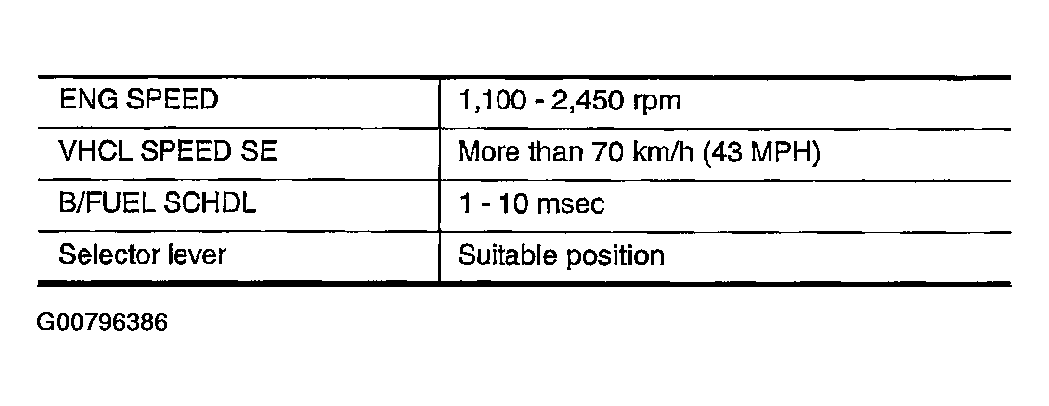

Fig 2: Inspecting Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE
