With CONSULT-II

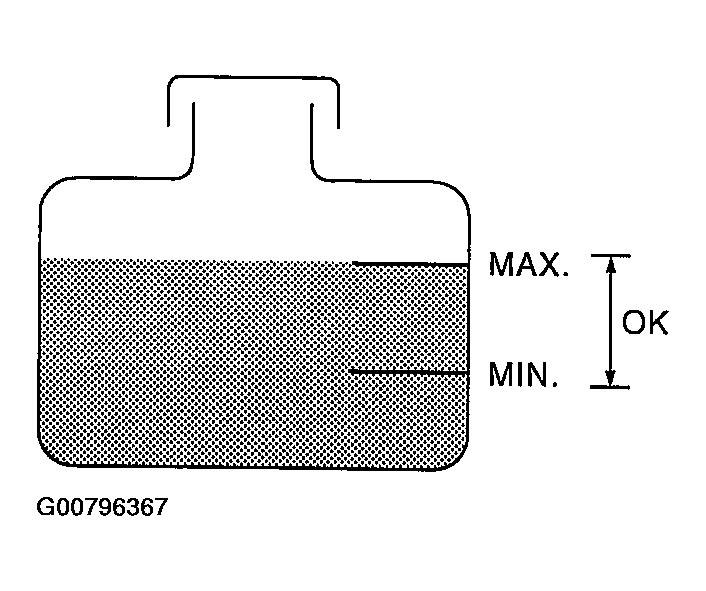

- Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to DIAGNOSTIC PROCEDURE .
- Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to DIAGNOSTIC PROCEDURE .
- Start engine and make sure that the cooling fan operates. If not, go to DIAGNOSTIC PROCEDURE .

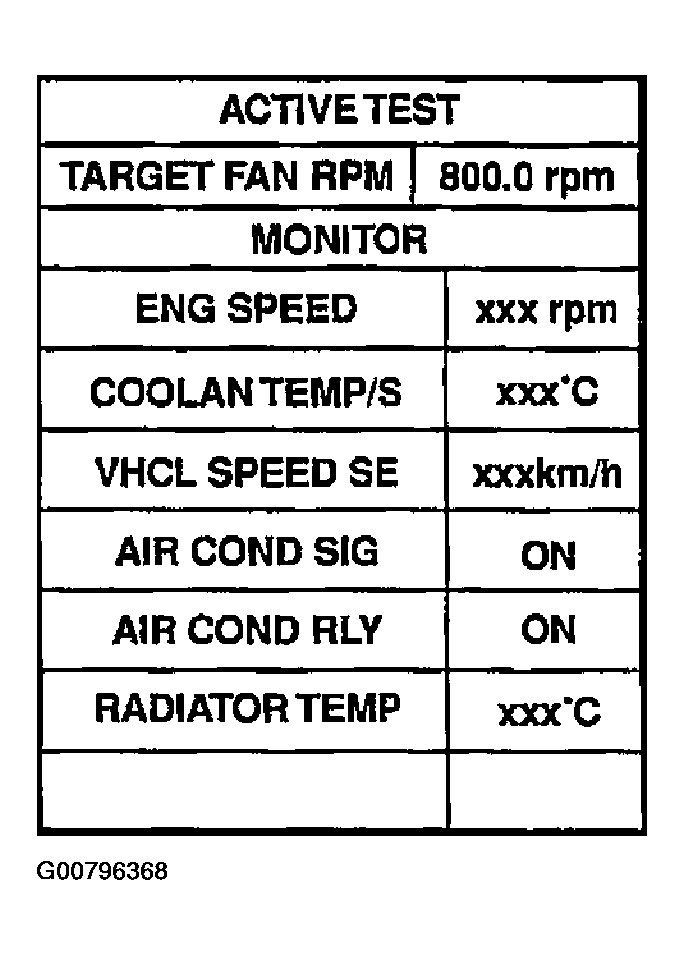

- Select "TARGET FAN RPM" in "ACTIVE TEST" mode with CONSULT-II.
- Change "TARGET FAN RPM" indication by touching "UP" and "DOWN", then make sure that the cooling fan operating speed changes according to "TRGT FAN RPM" indication.
- If the results are NG, go to DIAGNOSTIC PROCEDURE .
