Throttle Control Motor

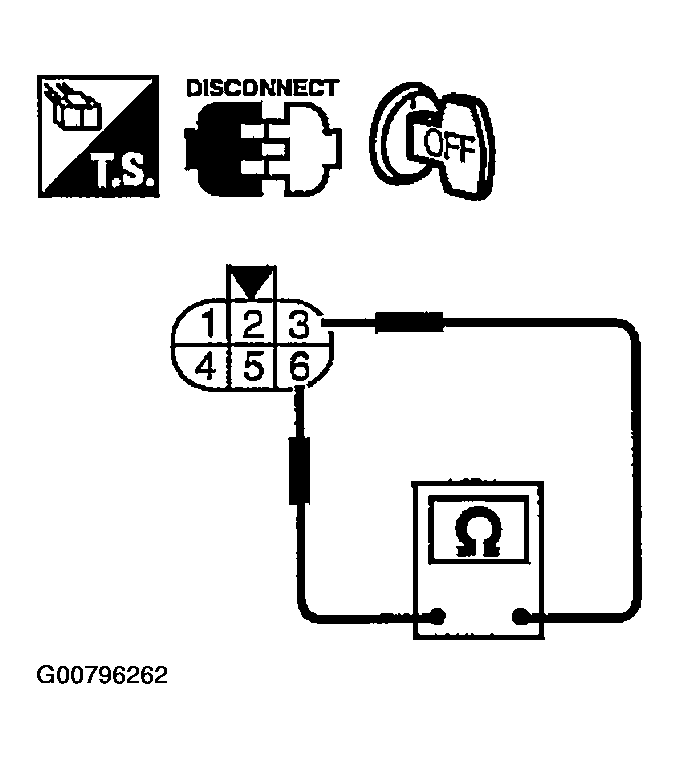

- Disconnect electric throttle control actuator harness connector.
- Check resistance between terminals 3 and 6.
Resistance: Approximately 1 - 15 Ξ© [at 25 Β° C (77 Β°F)]Β
- If NG, replace electric throttle control actuator and go to next step.
- Perform ACCELERATOR PEDAL RELEASED POSITION LEARNINGΒ
- Perform THROTTLE VALVE CLOSED POSITION LEARNINGΒ .
- Perform IDLE AIR VOLUME LEARNINGΒ .
