2004 Infiniti M45FACTORY OEM SERVICE PROCEDURE

Throttle Control Motor Relay

Apply 12V direct current between relay terminals 1 and 2.

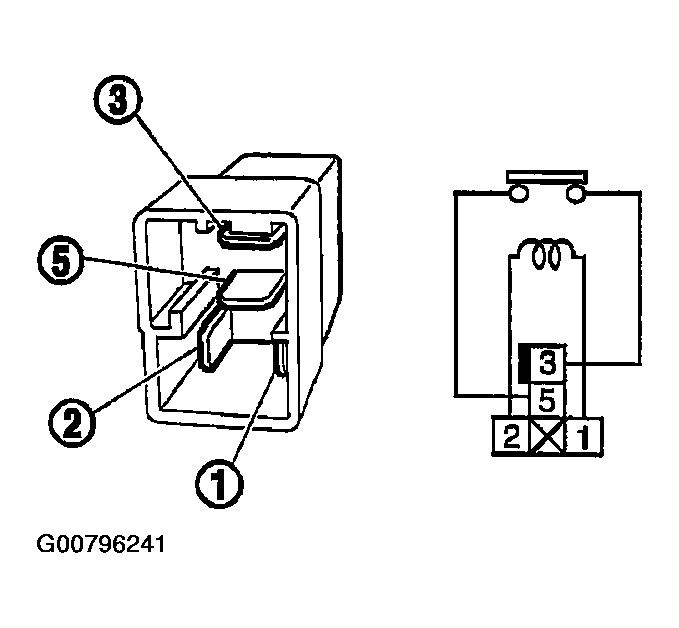

Fig 1: Identifying Relay Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
Check continuity between relay terminals 3 and 5.

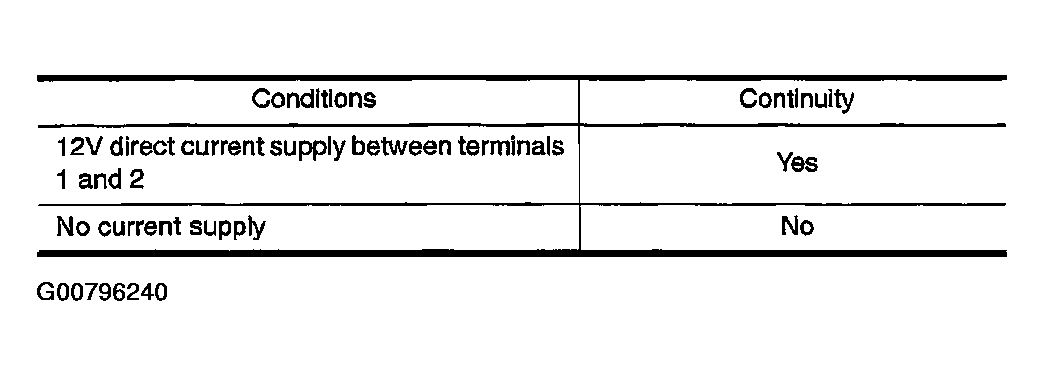

Fig 2: Inspecting Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace throttle control motor relay.
