With CONSULT-II
- Start engine (VDC switch OFF).
- Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to DIAGNOSTIC PROCEDURE .
If OK, go to following step.

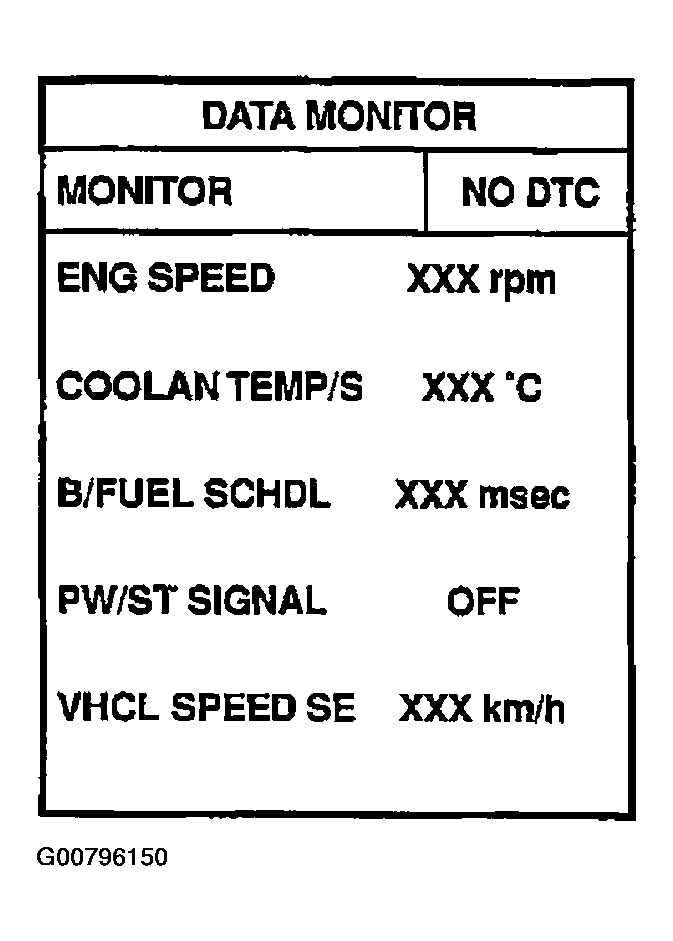

- Select "DATA MONITOR" mode with CONSULT-II.
- Warm engine up to normal operating temperature.

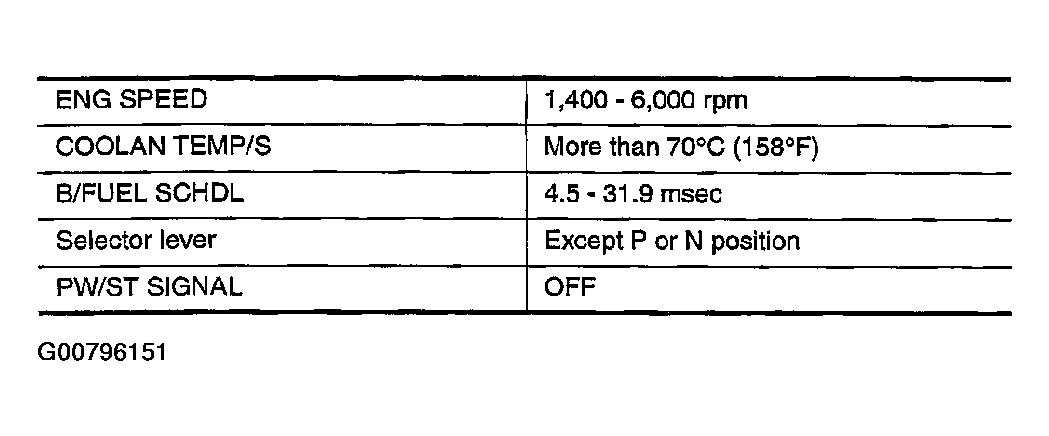

- Maintain the following conditions for at least 60 consecutive seconds.
- If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
