With GST
- Prepare a fuel container and a spare hose.
- Release fuel pressure from fuel line, refer to FUEL PRESSURE RELEASE .
- Remove the fuel feed hose on the fuel level sensor unit.
- Connect a spare fuel hose where the fuel feed hose was removed.
- Turn ignition switch OFF.

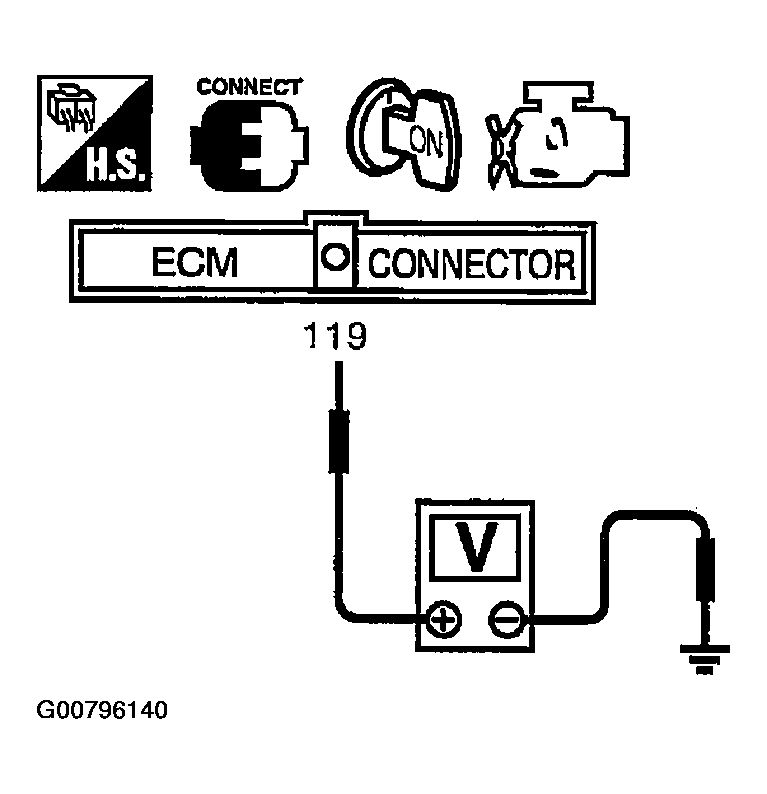

- Set voltmeters probe between ECM terminal 119 (fuel level sensor signal) and ground.
- Turn ignition switch ON.
- Check voltage between ECM terminal 119 and ground and note it.
- Drain fuel by 30 L (7-7/8 US gal, 6-5/8 lmp gal) from the fuel tank using proper equipment.
- Fill fuel into the fuel tank for 30 L (7-7/8 US gal, 6-5/8 lmp gal).
- Confirm that the voltage between ECM terminal 119 and ground changes more than 0.03V during step 8 - 10.
If NG, check component of fuel level sensor, refer to FUEL LEVEL SENSOR SIGNAL INSPECTION .
