2004 Infiniti M45FACTORY OEM SERVICE PROCEDURE
3. Check EVAP Control System Pressure Sensor Power Supply Circuit
- Turn ignition switch ON.

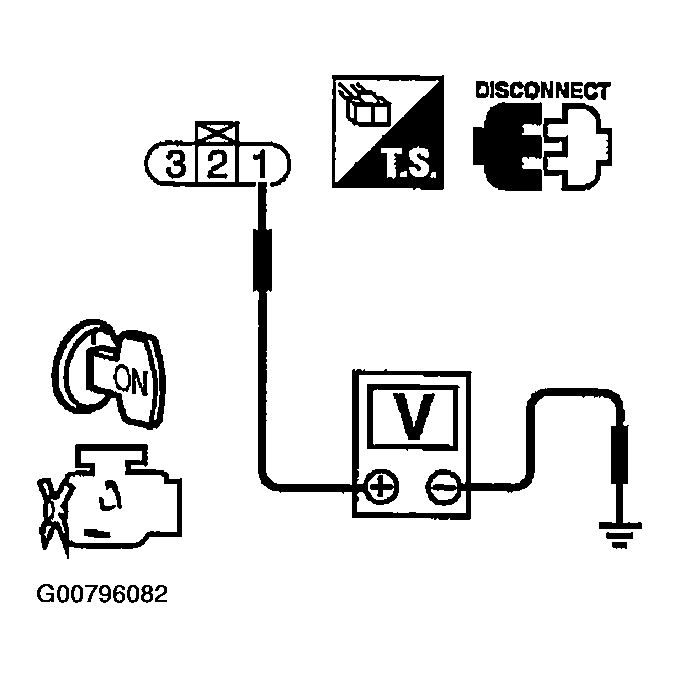

- Check voltage between EVAP control system pressure sensor terminal 1 and ground with CONSULT-II or tester.
Courtesy of NISSAN MOTOR CO., U.S.A.
Voltage: Approximately 5V
OK or NG
- OK: GO TO 5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT .
- NG: GO TO 4.
