2004 Infiniti M45FACTORY OEM SERVICE PROCEDURE
EVAP Control System Pressure Sensor
- Remove EVAP control system pressure sensor with its harness connector connected.
- Remove hose from EVAP control system pressure sensor.
- Install a vacuum pump to EVAP control system pressure sensor.
- Turn ignition switch ON.

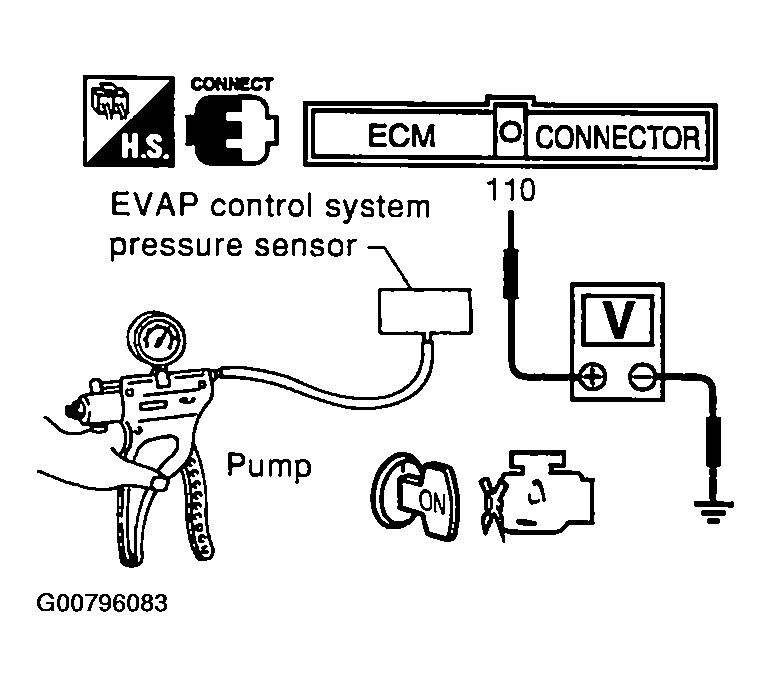

- Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.CAUTION:
- Always calibrate the vacuum pump gauge when using it.
- Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or pressure over 101.3 kPa (760 mmHg, 29.92 inHg).
- Check voltage between ECM terminal 110 and ground with CONSULT-II or tester.
