2004 Infiniti M45FACTORY OEM SERVICE PROCEDURE
5. Check Injectors
- Stop engine and then turn ignition switch ON.

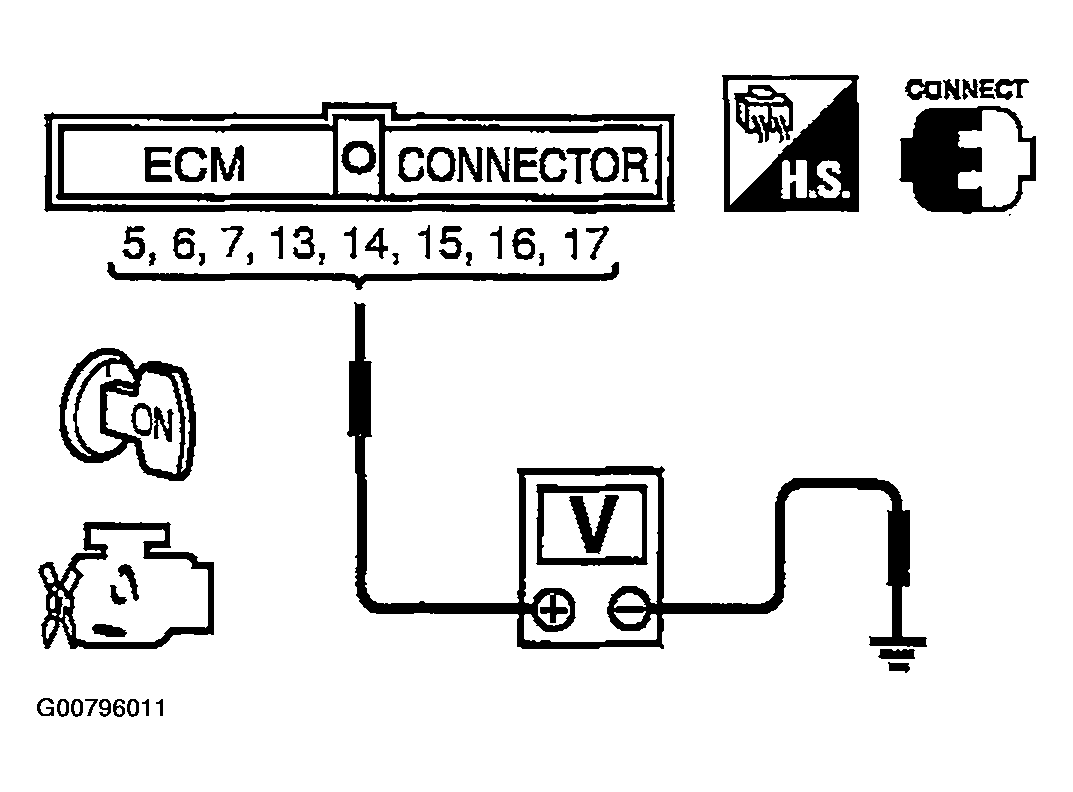

- Check voltage between ECM terminals 5, 6, 7, 13, 14, 15, 16, 17 and ground with CONSULT-II or tester.
Voltage: Battery voltage
- Refer to WIRING DIAGRAM for Injectors.
OK or NG
- OK: GO TO 6.
- NG: Perform DIAGNOSTIC PROCEDURE .
