Diagnostic Procedure
- Inspection Start
Which malfunction (P0102 or P0103) is duplicated?
- P0102 or P0103
- P0102: GO TO 2.
- P0103: GO TO 3.
Check the following for connection.Check Intake System
- Air duct
- Vacuum hoses
- Intake air passage between air duct and intake manifold
- OK or NG
- OK: GO TO 3.
- NG: Reconnect the parts.

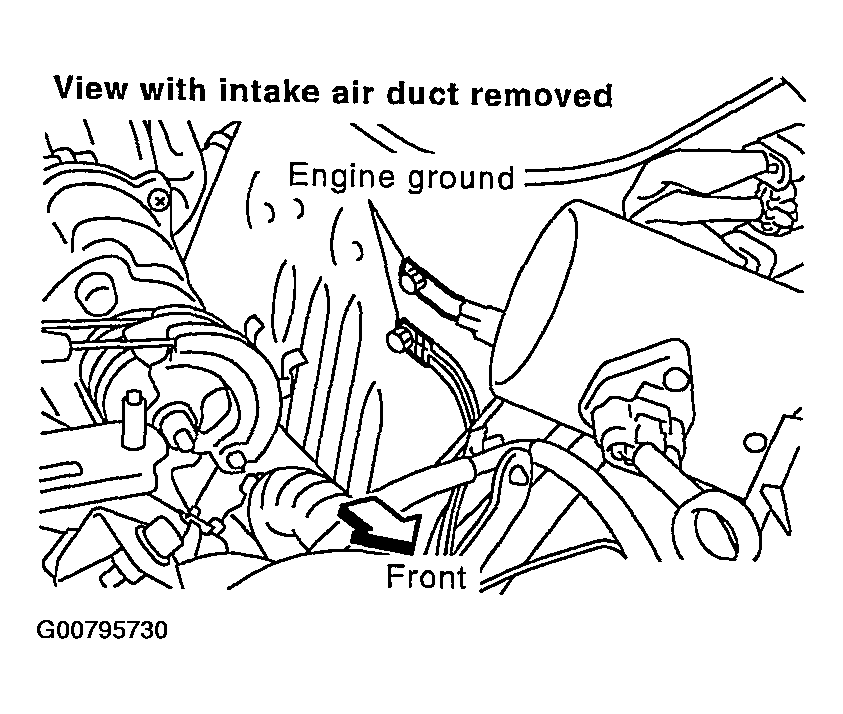

- Check Ground Connections
- Turn ignition switch OFF.
- Loosen and retighten two ground screws. Refer to GROUND INSPECTION .
- OK or NG
- OK: GO TO 4.
- NG: Repair or replace ground connections.
- Check MAF Sensor Power Supply Circuit

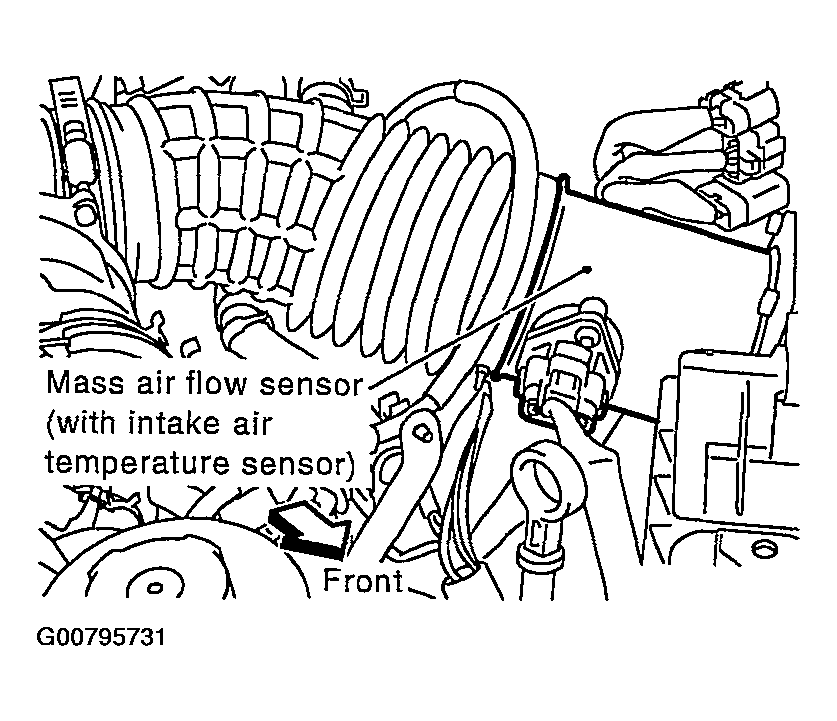

- Disconnect mass air flow (MAF) sensor harness connector.
- Turn ignition switch ON.

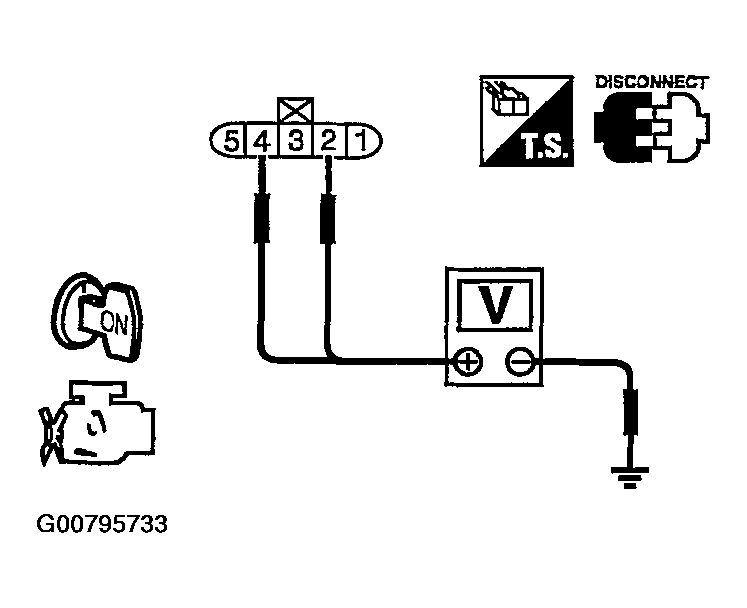

- Check voltage between MAF sensor terminals 2, 4 and ground with CONSULT-II or tester.
