2004 Infiniti M45FACTORY OEM SERVICE PROCEDURE
Mass Air Flow Sensor
- Reconnect all harness connectors disconnected.
- Start engine and warm it up to normal operating temperature.

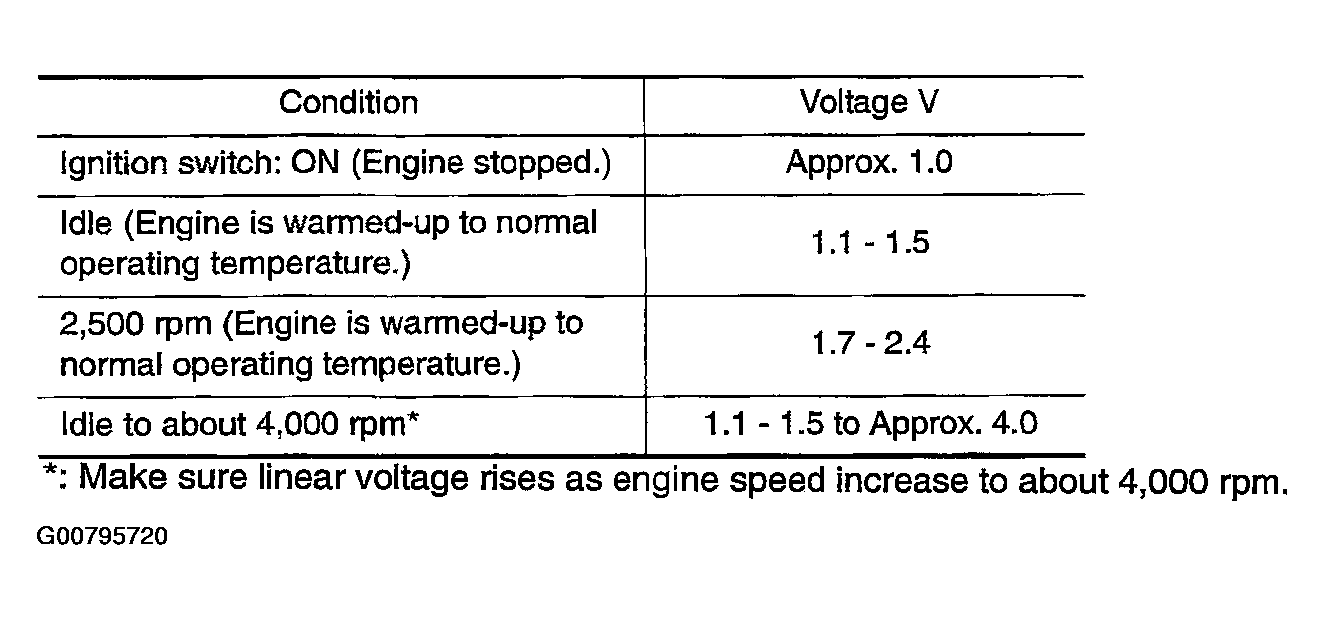

- Check voltage between ECM terminal 91 (Mass air flow sensor signal) and ground.
- If the voltage is out of specification, proceed the following.
- Turn ignition switch OFF.
- Disconnect mass air flow sensor harness connector and reconnect it again.
- Perform steps 2 and 3 again.
- If NG, remove mass air flow sensor from air duct. Check hot film for damage or dust.
- If NG, clean or replace mass air flow sensor.
