Repair For Component Parts: Inspection: Notes
Low and Reverse Brake Snap Ring, Spring Retainer and Return Springs
- Check for deformation, fatigue or damage.
If necessary, replace.
- When replacing spring retainer and return springs, replace them as a set.
Low and Reverse Brake Drive Plate
- Check facing for burns, cracks or damage.

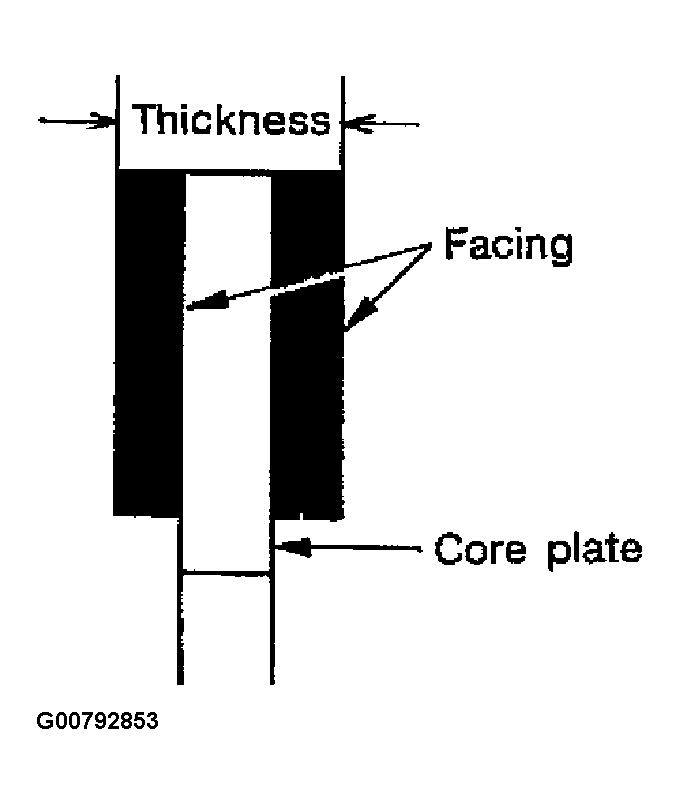

- Measure thickness of facing.
- Thickness of drive plate: Standard value 1.8 mm (0.071 in)
- Wear limit 1.6 mm (0.063 in)
- If not within wear limit, replace.
