2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

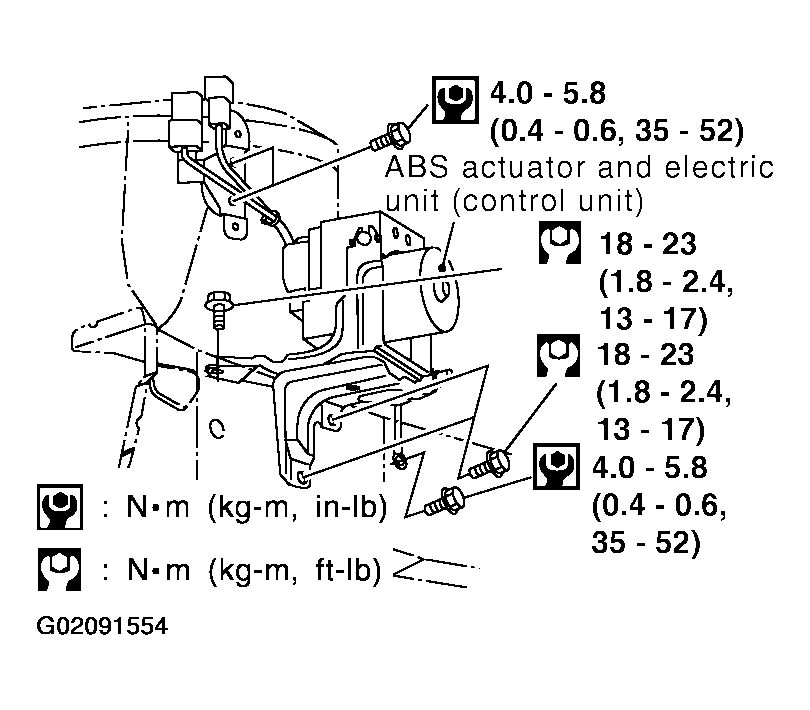

Abs Actuator And Electric Unit (Control Unit): Removal: Notes
WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect battery cable.
- Drain brake fluid. Go to CHANGING BRAKE FLUID .
- Remove air cleaner and duct.
- Apply different colored paint to each pipe connector and actuator to prevent incorrect connection.
- Disconnect harness connectors, brake pipes and remove fixing nuts and actuator ground cable.
