2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. CHECK OVERALL FUNCTION

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Perform VIAS SOL VALVE in ACTIVE TEST mode with CONSULT-II.
    3. Turn VIAS control solenoid valve ON and OFF, and make sure that power valve actuator rod moves.

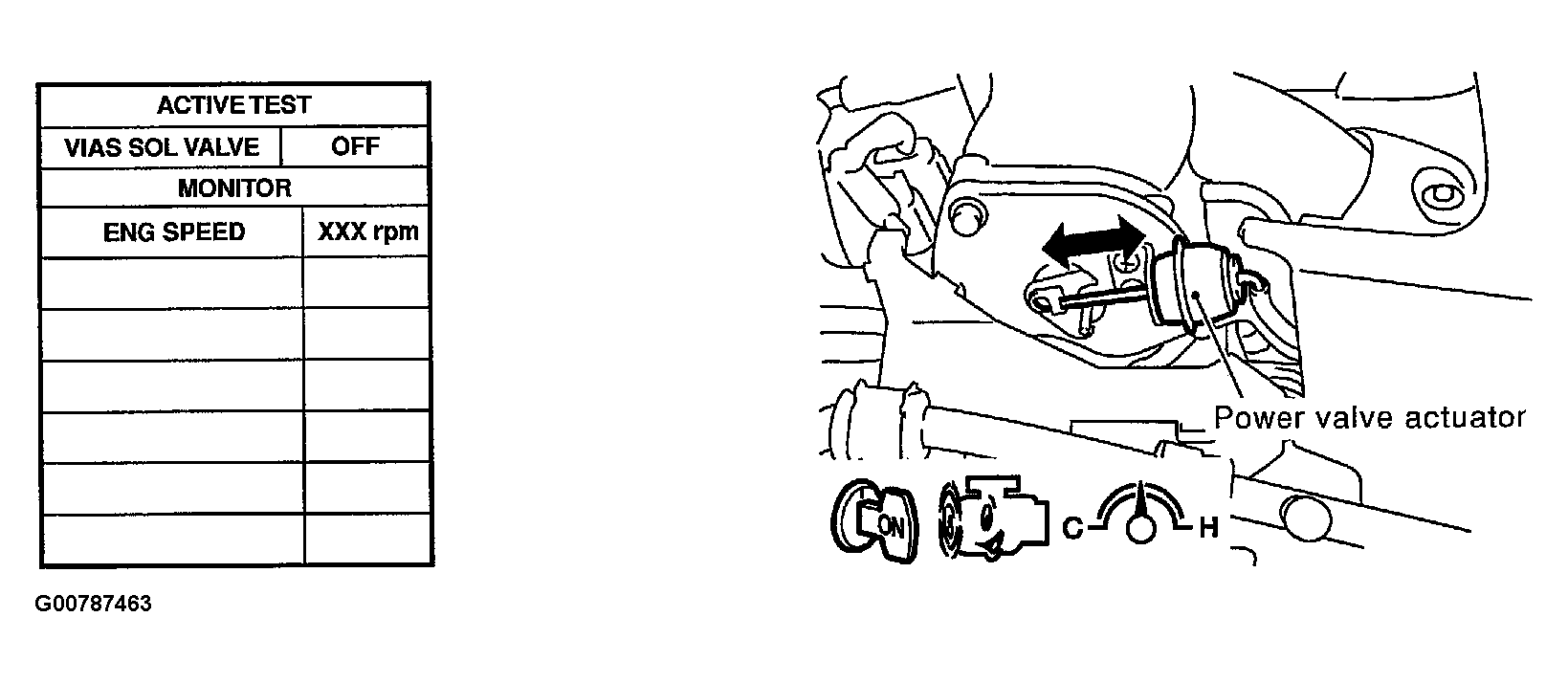

      Fig 1: Checking Function Of Power Valve Actuator
      G00787463Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Rev engine quickly up to above 5,000 rpm and make sure that power valve actuator rod moves.

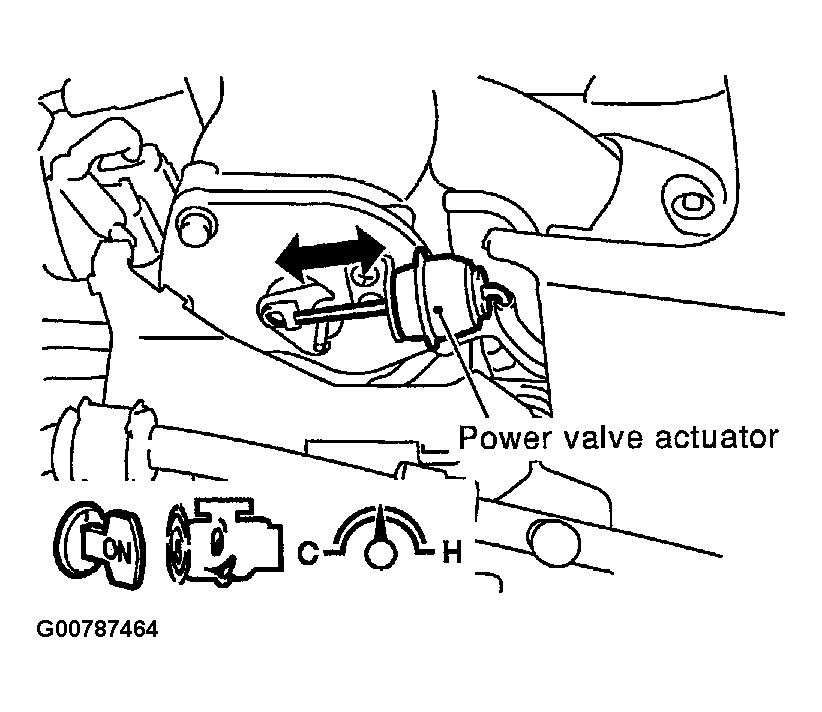

      Fig 2: Checking Function Of Power Valve Actuator
      G00787464Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 2.
  2. CHECK VACUUM EXISTENCE

    With CONSULT-II

    1. Stop engine and disconnect vacuum hose connected to power valve actuator.
    2. Start engine and let it idle.
    3. Perform VIAS SOL VALVE in ACTIVE TEST mode with CONSULT-II.
    4. Turn VIAS control solenoid valve ON and OFF, and check for the existence of vacuum under the following conditions.

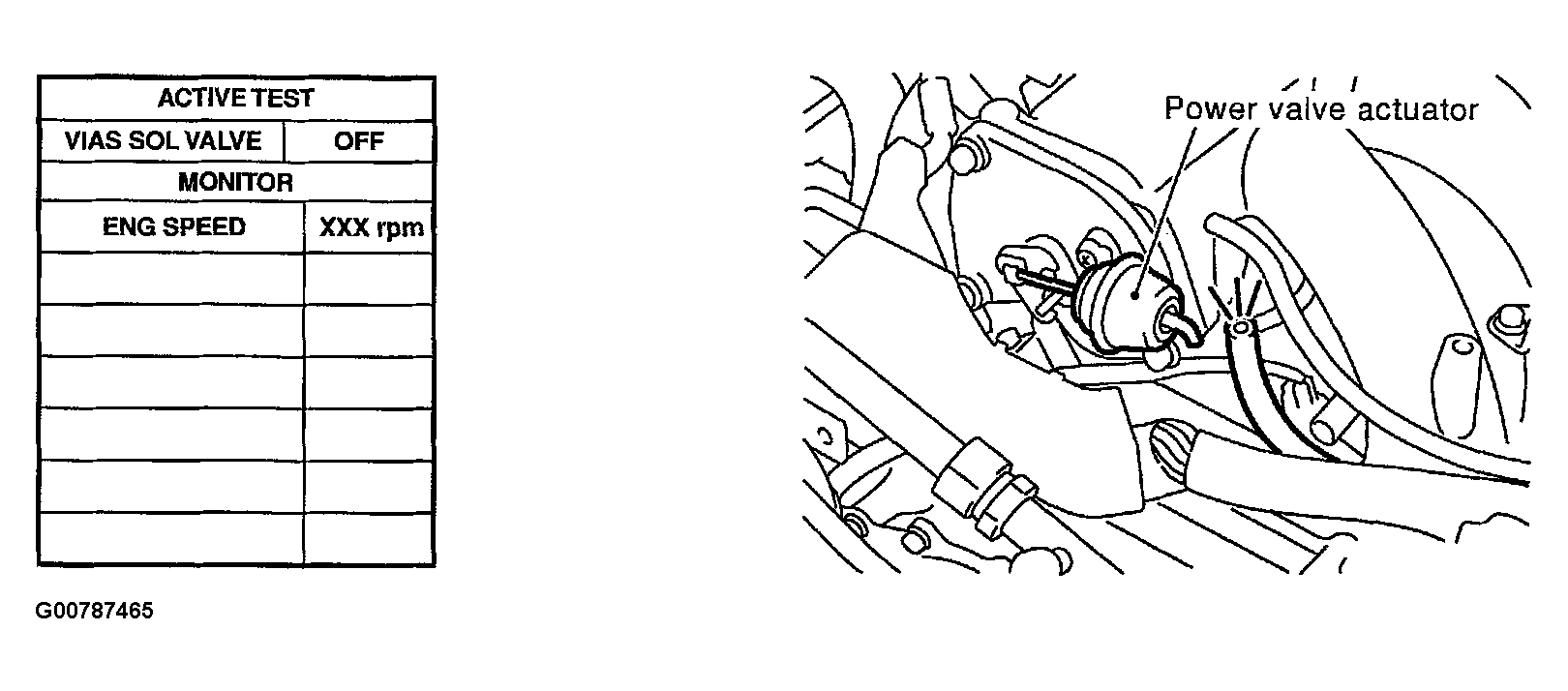

      Fig 3: Checking For Vacuum Existence Based On Conditions
      G00787465Courtesy of NISSAN MOTOR CO., U.S.A.
