Inspection Procedure
- Turn ignition switch OFF.
- Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the fuse box cover. See Figure
- Turn ignition switch ON.

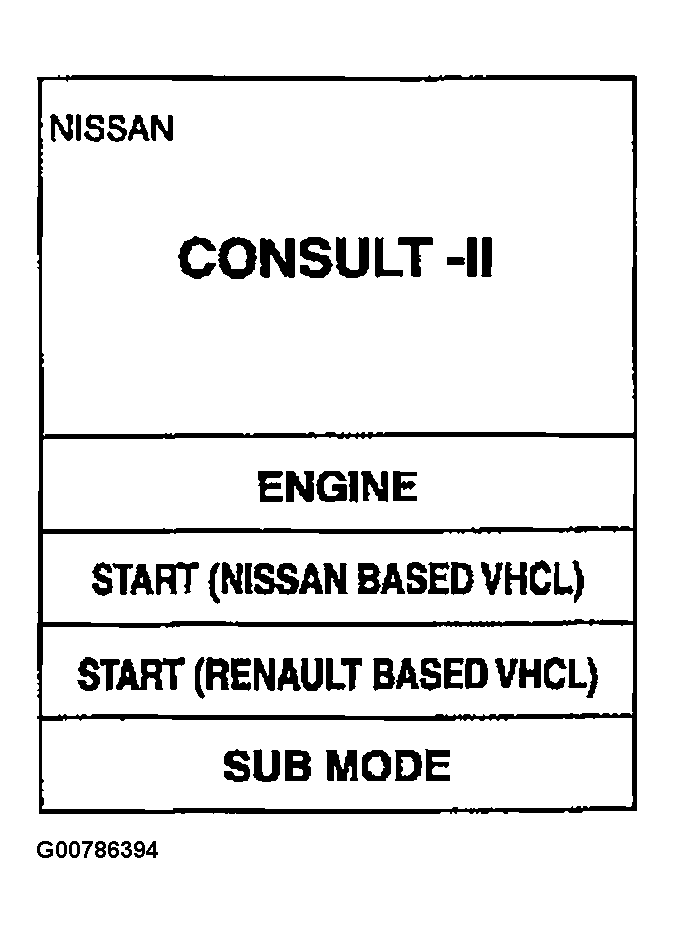

- Touch START (NISSAN BASED VHCL).
- Touch ENGINE.
If ENGINE is not indicated go to CONSULT-II DATA LINK CONNECTOR .

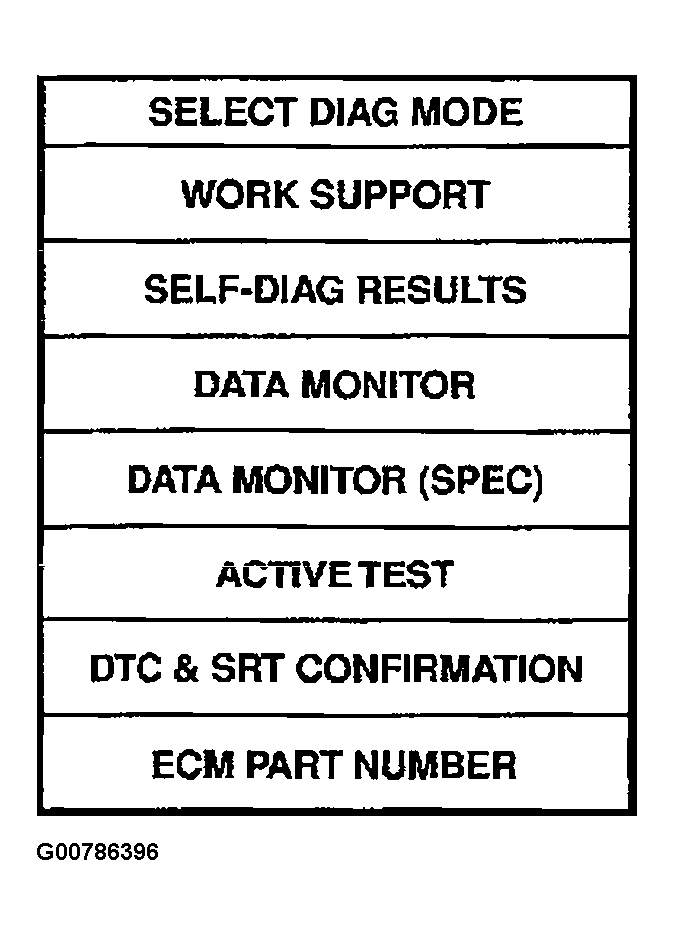

- Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual.
