2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. INSPECTION START

    Turn ignition switch to START.

    Is any cylinder ignited?

    Yes or No

    1. Yes: GO TO 2.
    2. No: GO TO  3 .
  2. CHECK OVERALL FUNCTION

    With CONSULT-II

    1. Start engine.
    2. Perform POWER BALANCE in ACTIVE TEST mode with CONSULT-II.

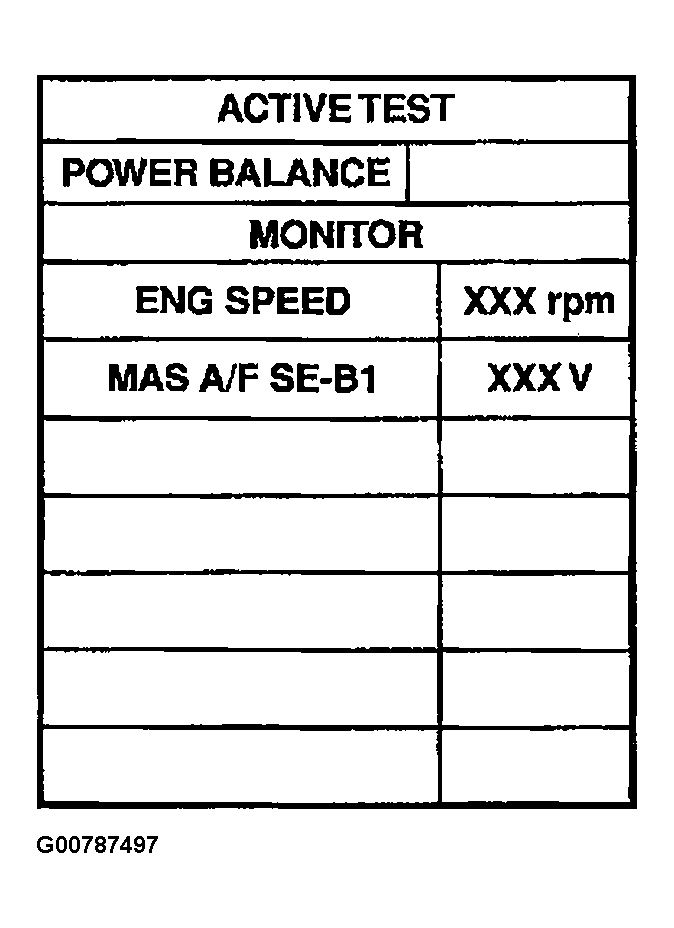

      Fig 1: Displaying CONSULT-II ACTIVE TEST Screen
      G00787497Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Make sure that each circuit produces a momentary engine speed drop.

    Without CONSULT-II

    1. Start engine.
    2. Listen to each injector operating sound.

    Clicking noise should be heard.

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 3.
  3. CHECK INJECTOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect injector harness connectors (bank 2) and harness connectors F58, F197 (bank 1).

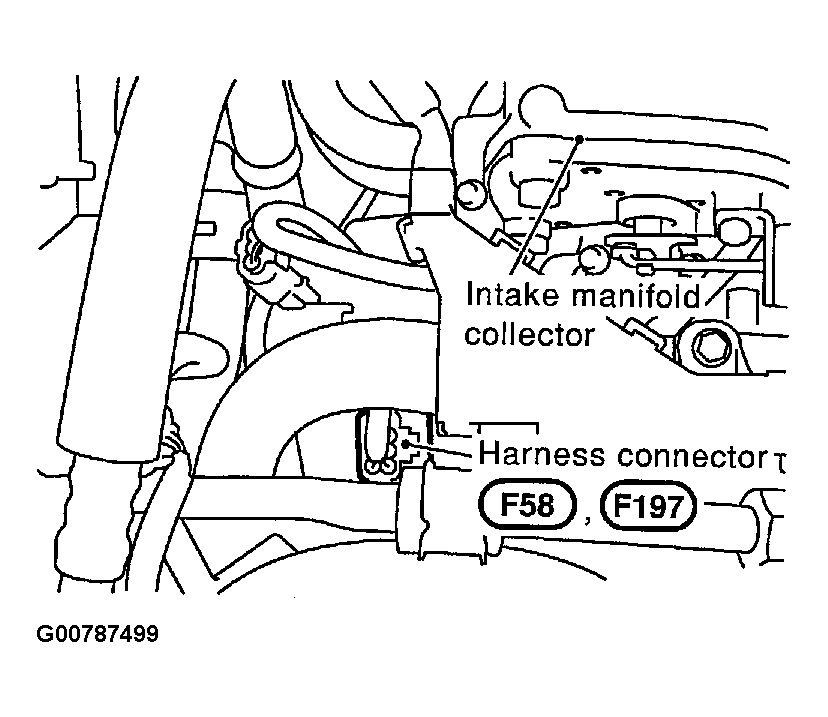

      Fig 2: Identifying Harness Connectors F58 And F197 (Bank 1)
      G00787499Courtesy of NISSAN MOTOR CO., U.S.A.
