2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Component Inspection

STOP LAMP SWITCH

Disconnect stop lamp switch harness connector. See Figure .

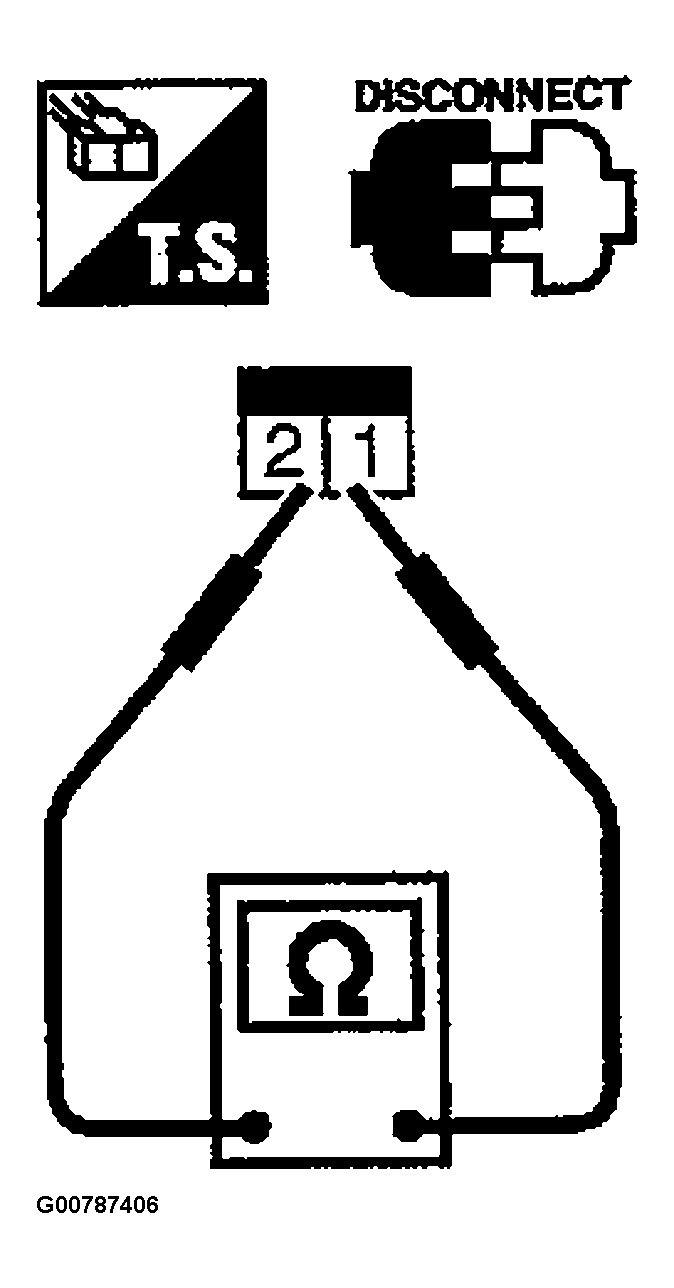

Fig 1: Terminals Continuity Inspection Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

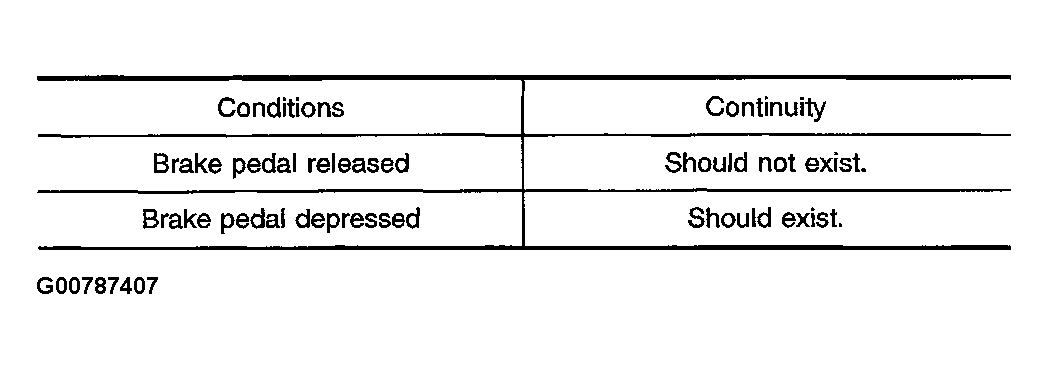

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals Based On Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace stop lamp switch.
