2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON
2. Select MAIN SW, RESUME/ACC SW, SET SW and CANCEL SW in DATA MONITOR mode with CONSULT-II.

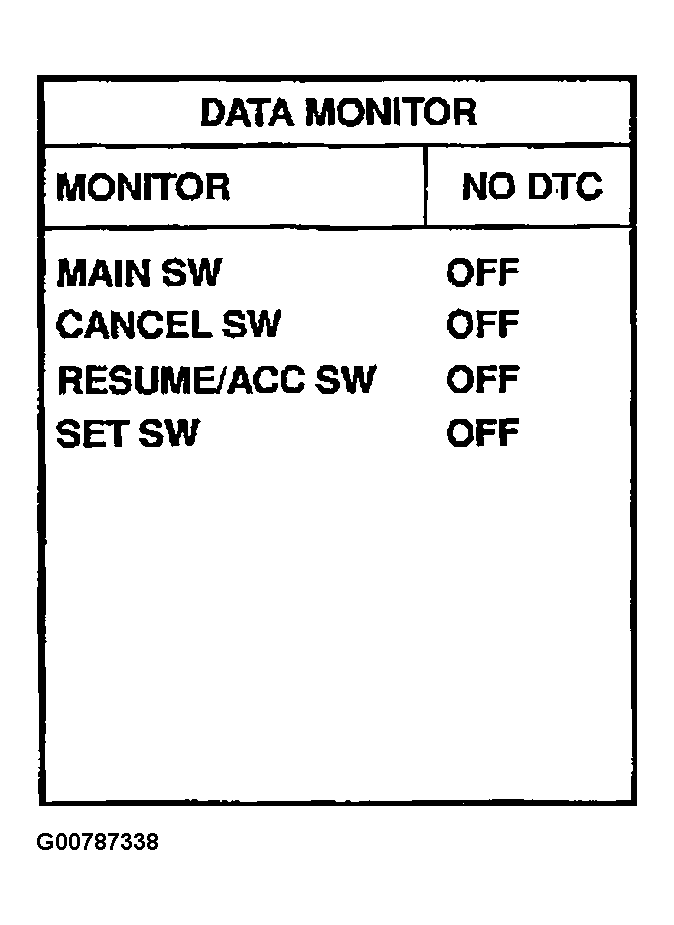

  Fig 1: Displaying CONSULT-II DATA MONITOR Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check each item indication under the following conditions.

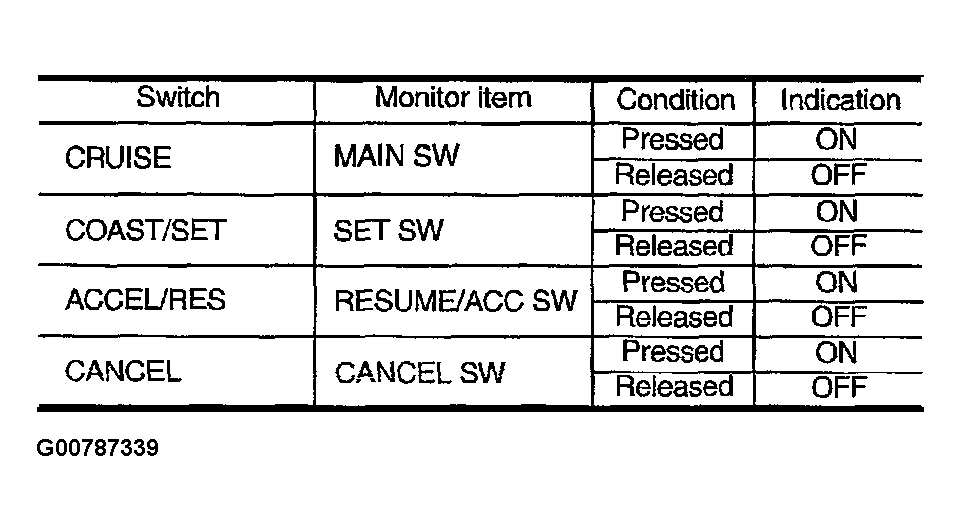

  Fig 2: Listing ASCD Steering Switch Conditions
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Turn ignition switch ON
2. Check voltage between ECM terminal 50 and ground with pressing each button.

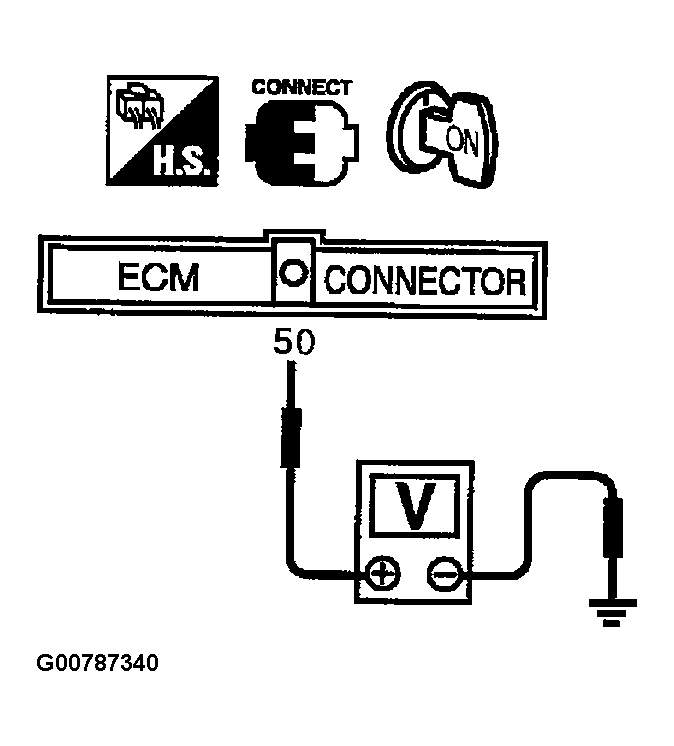

  Fig 3: Checking Voltage Between ECM And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
