Overall Function Check

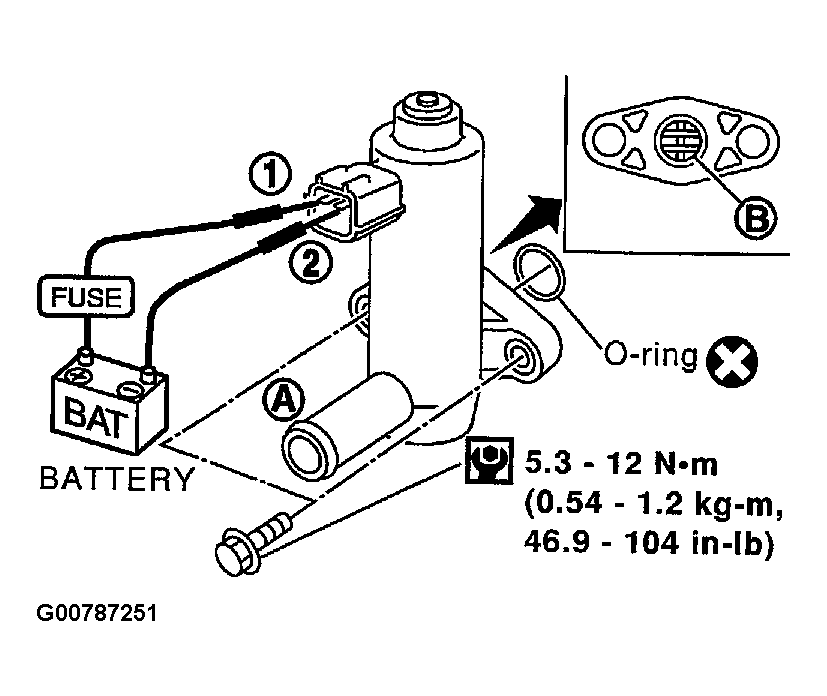

Use this procedure to check the overall function of the EVAP canister vent control valve circuit. During this check, a DTC might not be confirmed.
WITH GST
- Disconnect hose from water separator.
- Disconnect EVAP canister vent control valve harness connector.

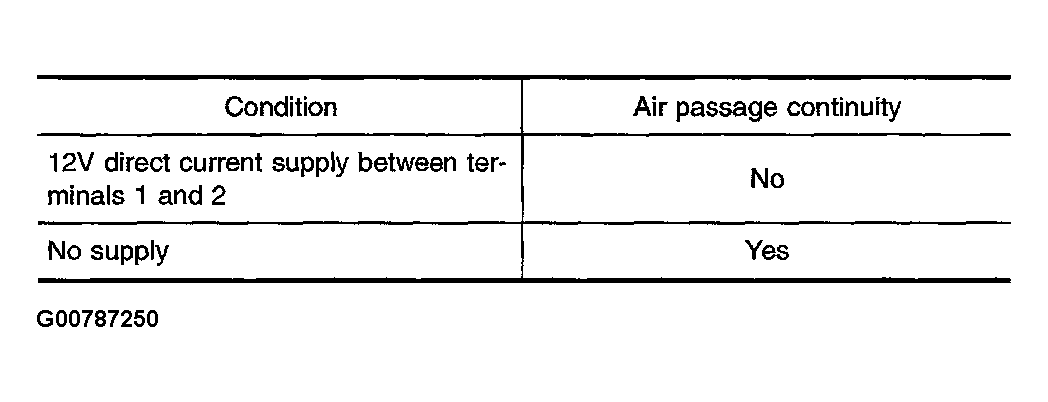

- Verify the following.
If the result is NG, go to DIAGNOSTIC PROCEDURE .
If the result is OK, go to Diagnostic Procedure for DTC P0442 EVAP CONTROL SYSTEM .
