2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. RETIGHTEN GROUND SCREWS
    1. Turn ignition switch OFF.
    2. Loosen and retighten engine ground screws. See Figure .
    1. : GO TO 2.
  2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect electric throttle control actuator harness connector. See Figure .
    2. Turn ignition switch ON.
    3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.

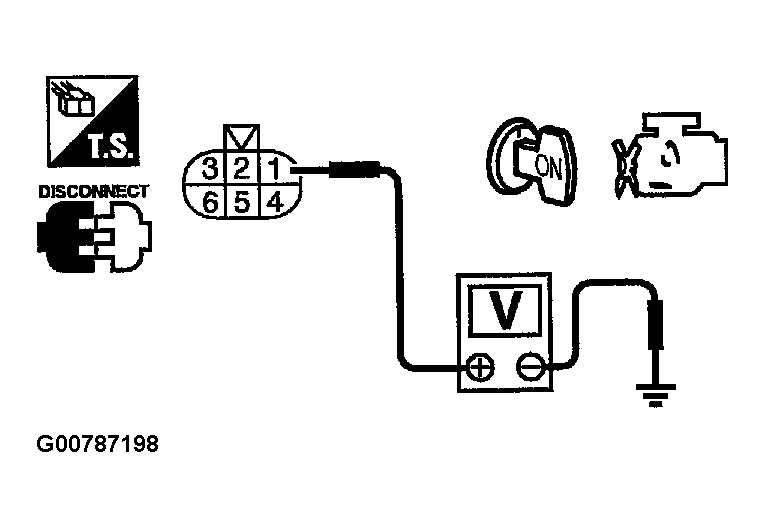

    Fig 1: Checking Voltage Between Electric Throttle Control Actuator Terminal 1 And Ground
    G00787198Courtesy of NISSAN MOTOR CO., U.S.A.

    Voltage: Approximately 5V

    OK or NG

    1. OK: GO TO  5 .
    2. NG: GO TO 3.
  3. CHECK SENSOR POWER SUPPLY CIRCUITS

    Check the following.

    • Harness for short to power and short to ground, between the following terminals.

      ECM terminal 111 and electric throttle control actuator terminal 1. Refer to WIRING DIAGRAM  .

      ECM terminal 111 and APP sensor terminal 6. Refer to WIRING DIAGRAM  .

      ECM terminal 111 and MAF sensor terminal 2. Refer to WIRING DIAGRAM  .

      ECM terminal 111 and EVAP control system pressure sensor terminal 1. Refer to WIRING DIAGRAM  .

      ECM terminal 111 and power steering pressure sensor terminal 1. Refer to WIRING DIAGRAM  .

      ECM terminal 111 and refrigerant pressure sensor terminal 1. Refer to WIRING DIAGRAM  .

    • ECM pin terminal

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair short to ground or short to power in harness or connectors.
  4. CHECK COMPONENTS

    Check the following.

    OK or NG

    1. OK: GO TO  7 .
    2. NG: Replace malfunctioning component.
  5. CHECK THROTTLE POSITION SENSOR

    Refer to COMPONENT INSPECTION  .

    OK or NG

    1. OK: GO TO  7 .
    2. NG: GO TO 6.
  6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
    1. Replace electric throttle control actuator.
    2. Perform THROTTLE VALVE CLOSED POSITION LEARNING  .
    3. Perform IDLE AIR VOLUME LEARNING  .
    1. : INSPECTION END
  7. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

    1. : INSPECTION END
