Overall Function Check: Notes
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be confirmed.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up pressure to escape.
Then turn the cap all the way off.
WITH CONSULT-II

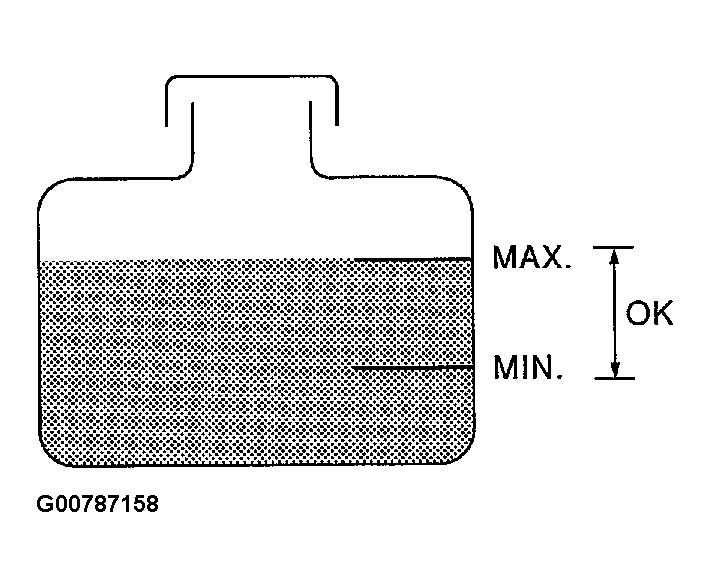

- Check the coolant level in the reservoir tank and radiator. Allow engine to cool before checking coolant level. If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to DIAGNOSTIC PROCEDURE .
- Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to DIAGNOSTIC PROCEDURE .
- Turn ignition switch ON.

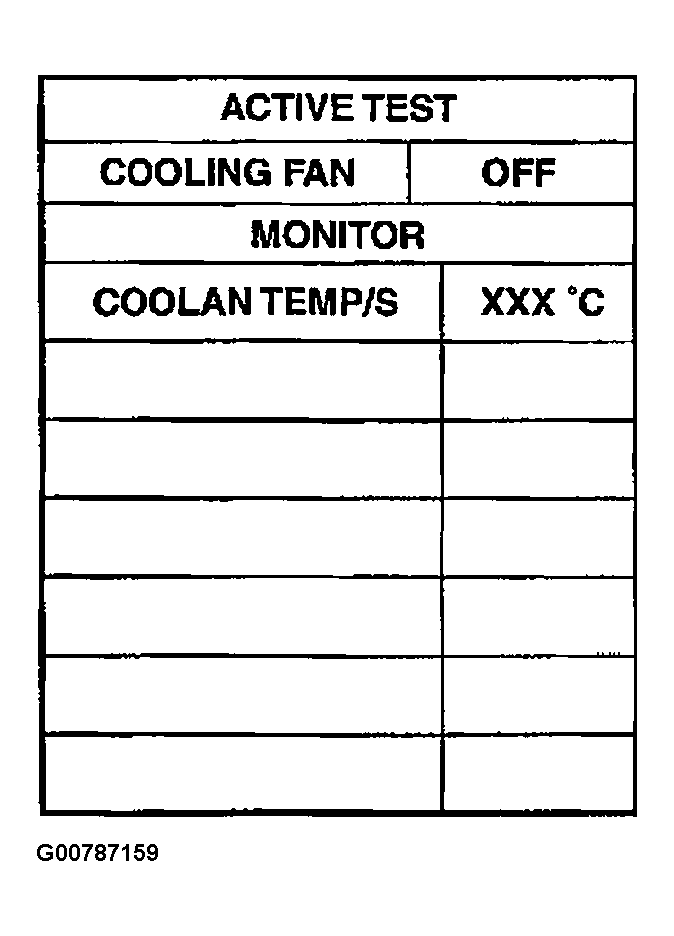

- Perform COOLING FAN in ACTIVE TEST mode with CONSULT-II.
- If the results are NG, go to DIAGNOSTIC PROCEDURE .
