Never raise engine speed above 3,600 rpm during the DTC Confirmation Procedure. If the engine speed limit is exceeded, retry the procedure from step 2 .
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

WITH CONSULT-II

Start engine and warm it up to the normal operating temperature.
Turn ignition switch OFF and wait at least 10 seconds.
Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
Let engine idle for 1 minute.
Select DATA MONITOR mode with CONSULT-II. See Figure .
Hold engine speed at 2,000 rpm and check one of the following.
- HO2S1 (B1)/(B2) voltage should go above 0.70V at least once.
- HO2S1 (B1)/(B2) voltage should go below 0.21V at least once.
If the check result is NG, perform DIAGNOSTIC PROCEDURE .

If the check result is OK, perform the following step.
Let engine idle at least 5 minutes.
Maintain the following condition at least 50 consecutive seconds.

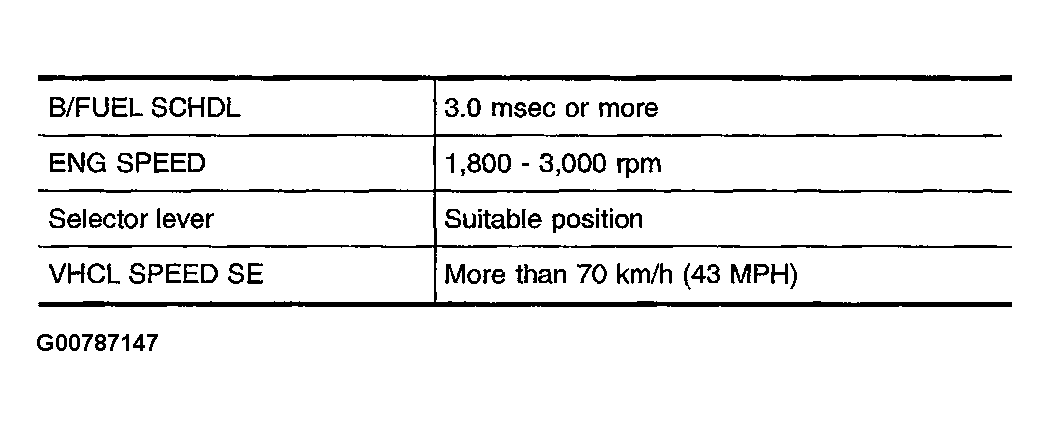

Fig 1: Displaying DATA MONITOR Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

During this test, P0134 and/or P0154 may be displayed on CONSULT-II screen.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

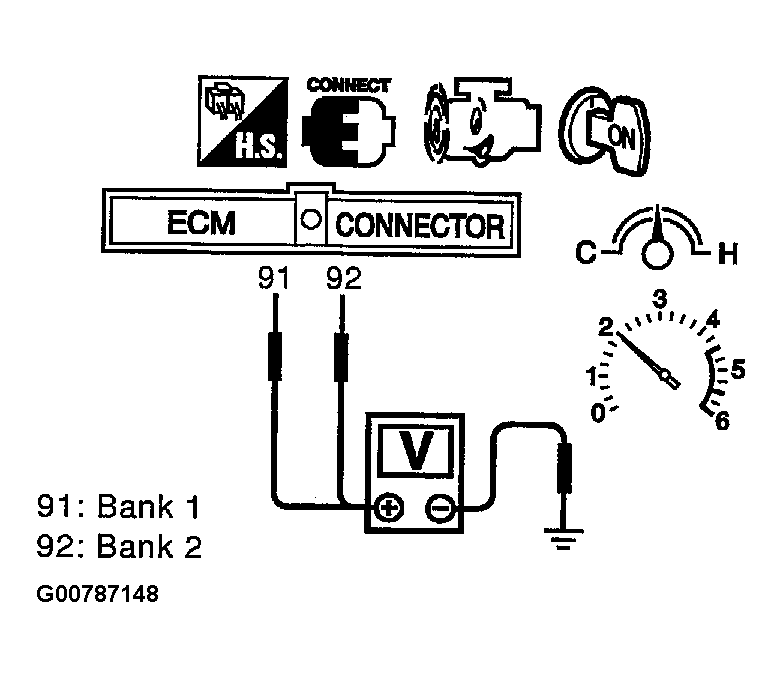

Fig 2: Checking Overall Function Of The Closed Loop Control

Courtesy of NISSAN MOTOR CO., U.S.A.
