2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Throttle Control Motor Relay

Apply 12V direct current between relay terminals 1 and 2.

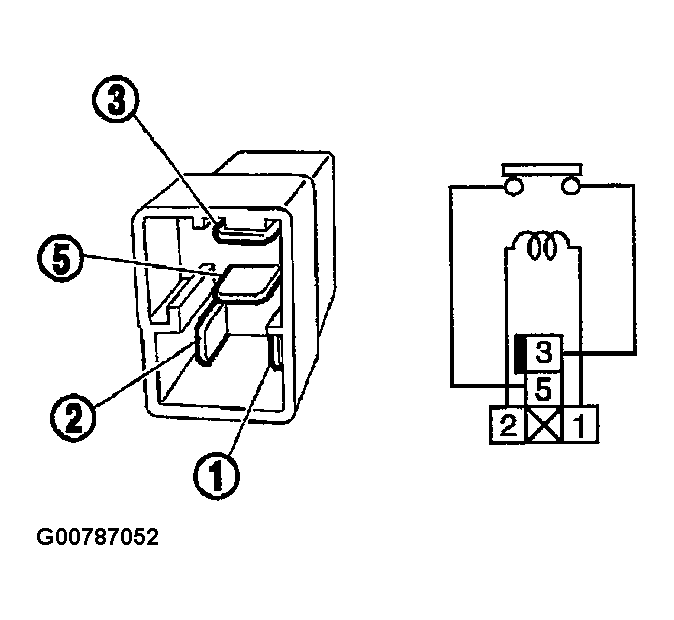

Fig 1: Checking Continuity Between Throttle Control Motor Relay Connector Terminals 3 And 5
Courtesy of NISSAN MOTOR CO., U.S.A.
Check continuity between relay terminals 3 and 5.

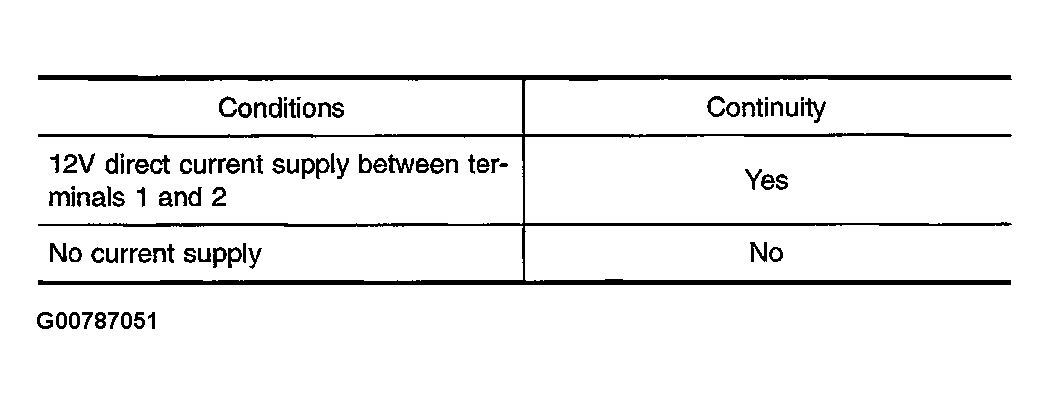

Fig 2: Displaying Continuity Based On Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace throttle control motor relay.
