2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. RETIGHTEN GROUND SCREWS
    1. Turn ignition switch OFF.
    2. Loosen and retighten engine ground screws. See Figure .
    1. : GO TO 2.
  2. CHECK CONNECTOR
    1. Disconnect EVAP control system pressure sensor harness connector.
    2. Check sensor harness connector for water.

      Water should not exist.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace harness connector.
  3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between EVAP control system pressure sensor terminal 1 and ground with CONSULT-II or tester.

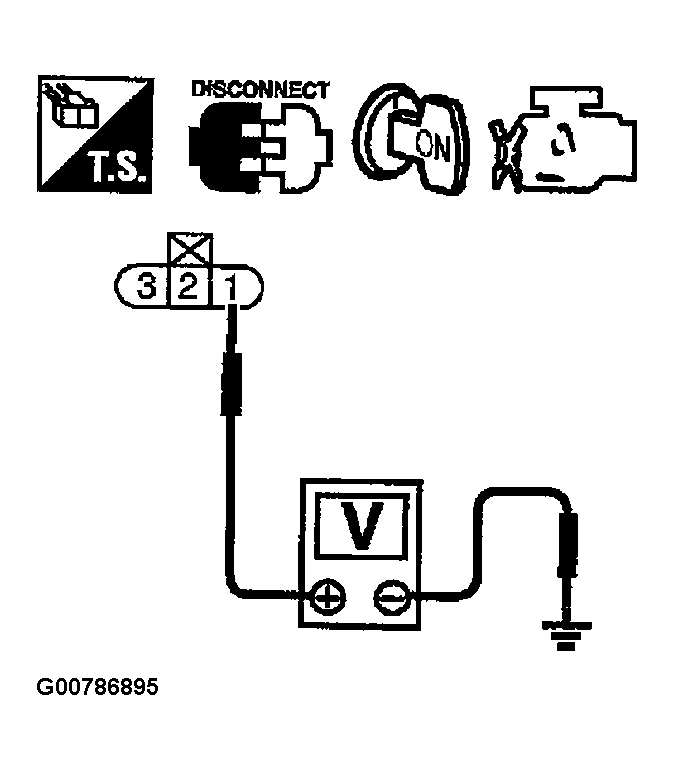

      Fig 1: Checking Voltage Between EVAP Control System Pressure Sensor Terminal 1 And Ground
      G00786895Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Approximately 5V

    OK or NG

    1. OK: GO TO  5 .
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART
    • Harness connectors B2, M2
    • Harness connectors M81, F49
    • Harness for open or short between EVAP control system pressure sensor and ECM
    1. : Repair harness or connectors.
  5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between EVAP control system pressure sensor terminal 3 and engine ground.

      Refer to Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to power.

    OK or NG

    1. OK: GO TO  7 .
    2. NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B2, M2
    • Harness connectors M81, F49
    • Joint connector-20
    • Harness for open between EVAP control system pressure sensor and ECM
    • Harness for open between EVAP control system pressure sensor and TCM (Transmission Control Module)
    1. : Repair open circuit or short to power in harness or connectors.
  7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 60 and EVAP control system pressure sensor terminal 2.

      Refer to Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  9 .
    2. NG: GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B2, M2
    • Harness connectors M81, F49
    • Harness for open or short between ECM and EVAP control system pressure sensor
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
    1. Remove EVAP control system pressure sensor with its harness connector connected
      CAUTION: Never apply force to the air hole protector of the sensor if equipped. See Figure .
