2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. CHECK EVAP CANISTER
    1. Turn ignition switch OFF.
    2. Check EVAP canister for cracks.

      OK or NG

    1. OK (With CONSULT-II): GO TO 2.
    2. OK (Without CONSULT-II): GO TO 3.
    3. NG: Replace EVAP canister.
  2. CHECK PURGE FLOW

    With CONSULT-II

    1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP service port and install vacuum gauge.

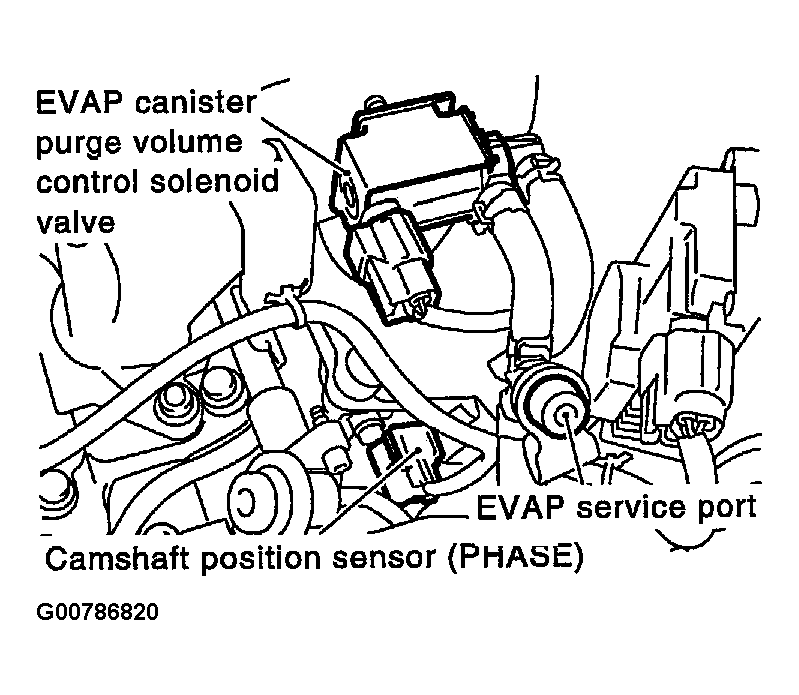

      Fig 1: Locating EVAP Canister & Service Port
      G00786820Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Start engine and let it idle.
    3. Select PURG VOL CONT/V in ACTIVE TEST mode with CONSULT-II.
    4. Rev engine up to 2,000 rpm.
    5. Touch Qd and Qu on CONSULT-II screen to adjust PURG VOL CONT/V opening and check vacuum existence.

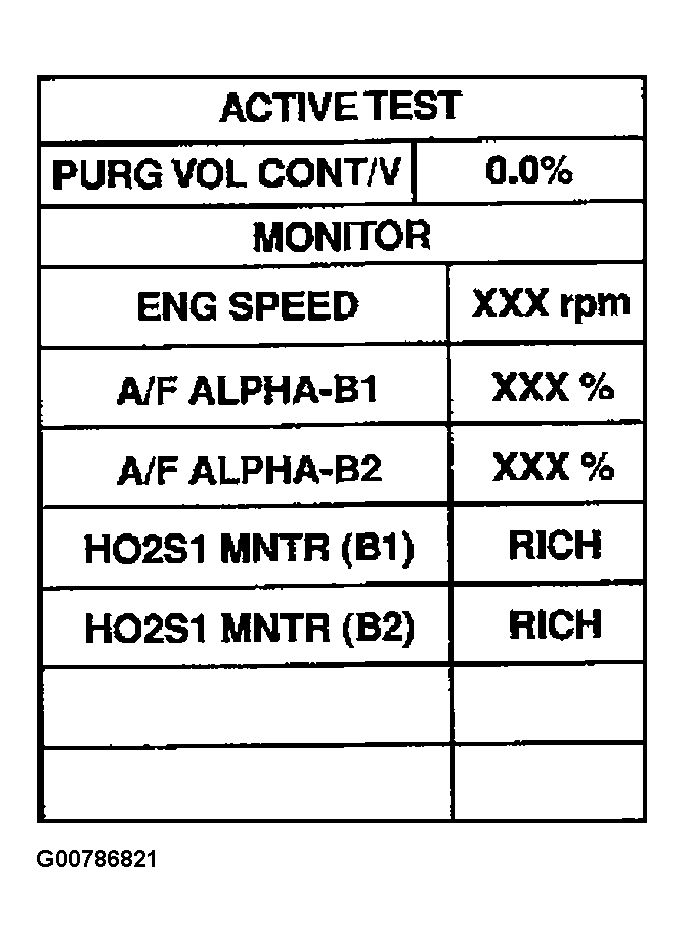

      Fig 2: Displaying CONSULT-II ACTIVE TEST Screen
      G00786821Courtesy of NISSAN MOTOR CO., U.S.A.
