2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

CHECK FUEL TANK TEMPERATURE SENSOR
1. Remove fuel level sensor unit.
2. Check resistance between fuel level sensor unit and fuel pump terminals 4 and 5 by heating with hot water or heat gun as shown in Fig 1 .

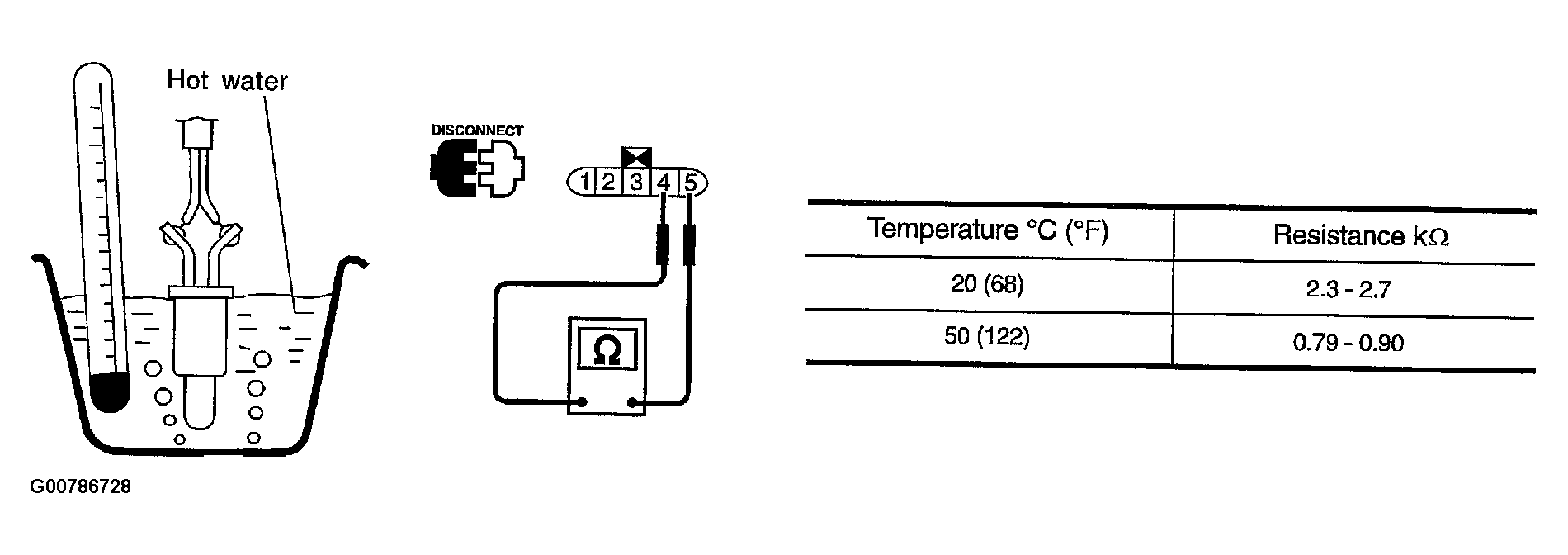

  Fig 1: Checking Fuel Tank Temperature Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG
1. OK: GO TO 2.
2. NG: Replace fuel level sensor unit.
CHECK INTERMITTENT INCIDENT
- Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
- Refer to WIRING DIAGRAM .
1. : INSPECTION END
