Overall Function Check
Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check, a DTC might not be confirmed.
WITH GST
- Start engine and warm it up to normal operating temperature.

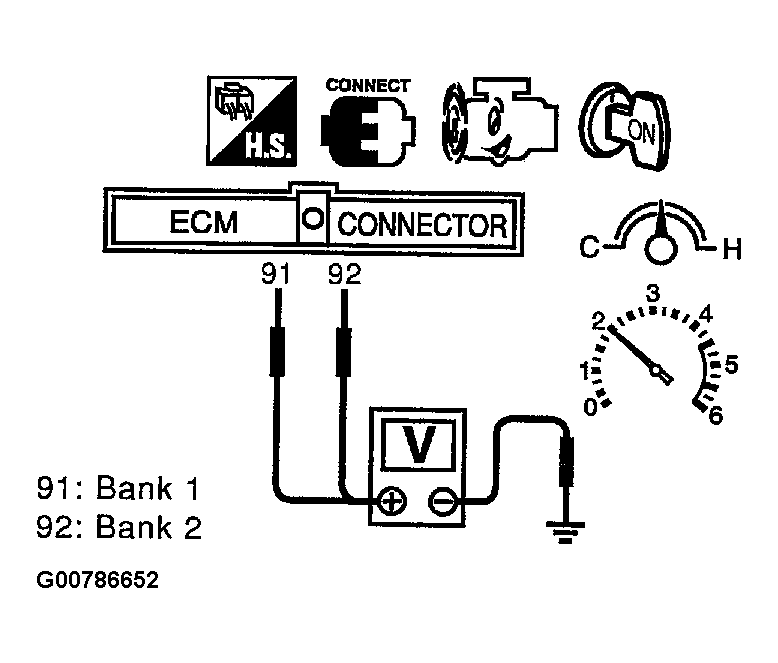

- Set voltmeter probes between ECM terminal 91 (HO2S1 bank 1 signal) or 92 (HO2S1 bank 2 signal) and engine ground.
- Check the following with engine speed held at 2,000 rpm constant under no load.
- The voltage does not remain in the range of 0.2 - 0.4V.
- If NG, go to DIAGNOSTIC PROCEDURE .
