With CONSULT-II

NOTE: Before perform Idle Air Volume Learning, make sure that Accelerator Pedal Released Position Learning and Throttle Valve Closed Position Learning are completed.

If not, perform ACCELERATOR PEDAL RELEASED POSITION LEARNING and THROTTLE VALVE CLOSED POSITION LEARNING .

Start engine and warm it up to normal operating temperature.
Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
Select IDLE AIR VOL LEARN in WORK SUPPORT mode.

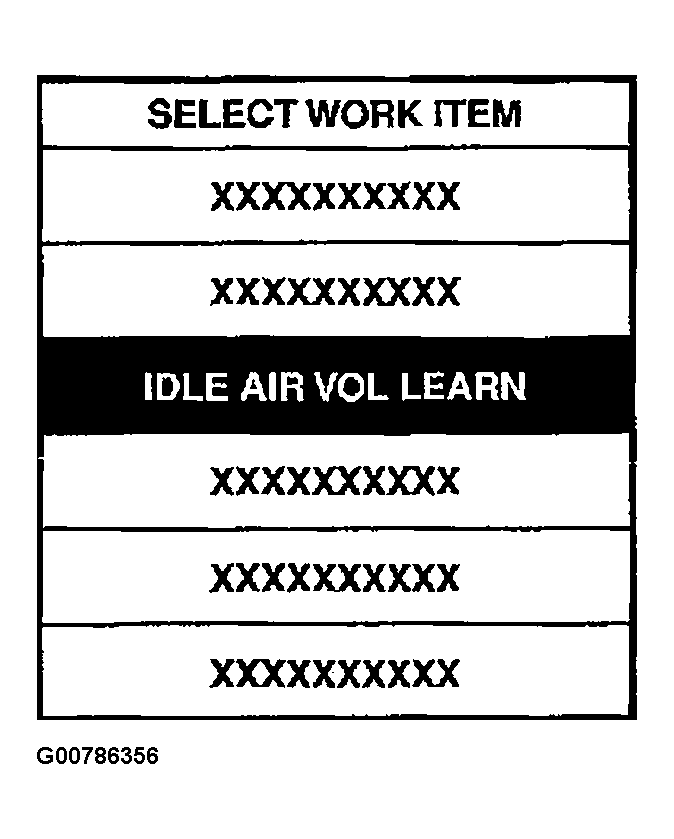

Fig 1: Selecting IDLE AIR VOL LEARN In WORK SUPPORT Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START and wait 20 seconds.

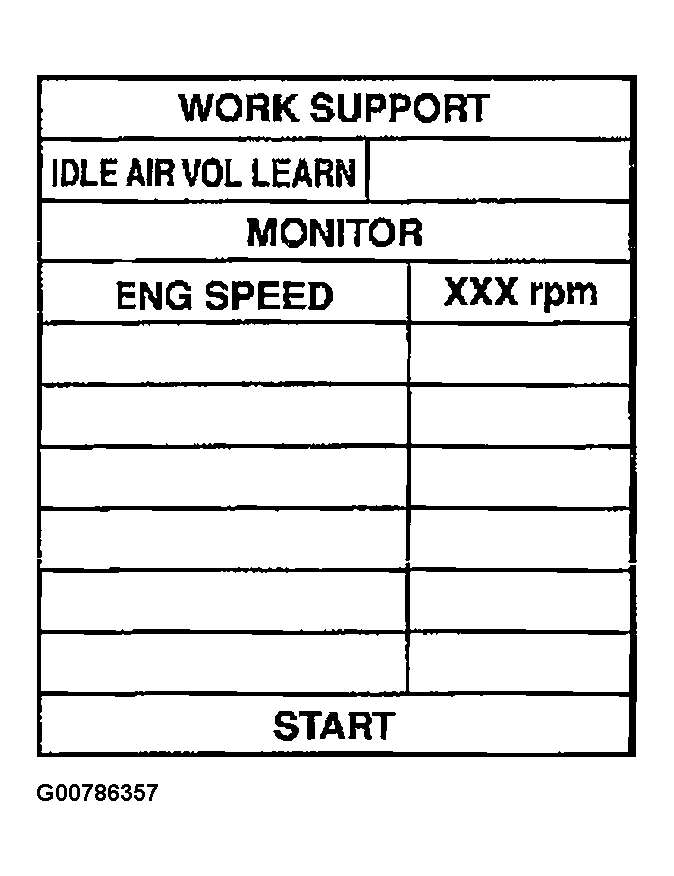

Fig 2: Displaying CONSULT-II WORK SUPPORT Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that CMPLT is displayed on CONSULT-II screen. If CMPLT is not displayed, Idle Air Volume Learning will not be carried out successfully. In this case, find the cause of the incident by referring to the Diagnostic Procedure in Fig 4 .

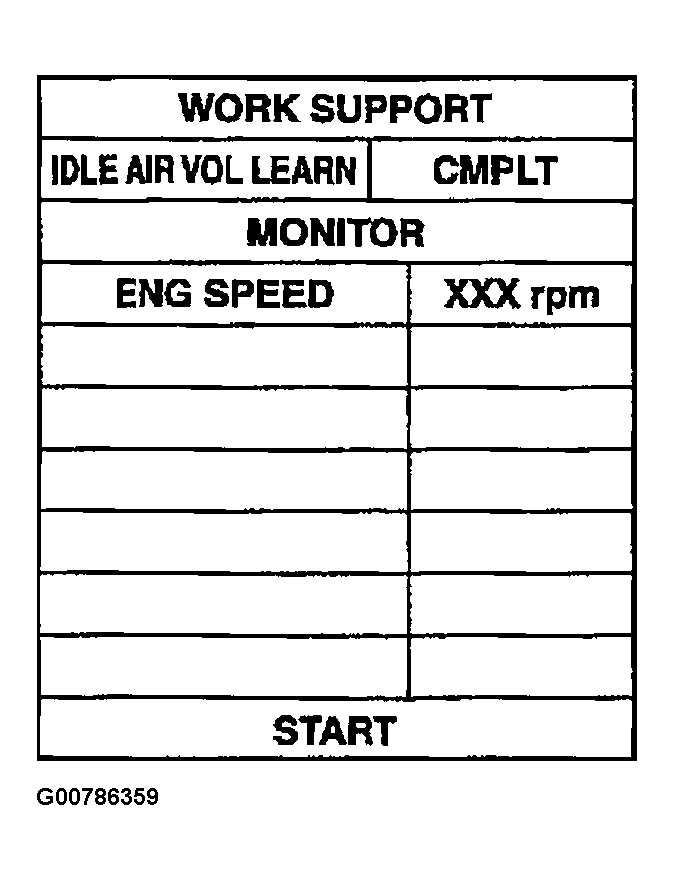

Fig 3: Displaying CONSULT-II WORK SUPPORT Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.

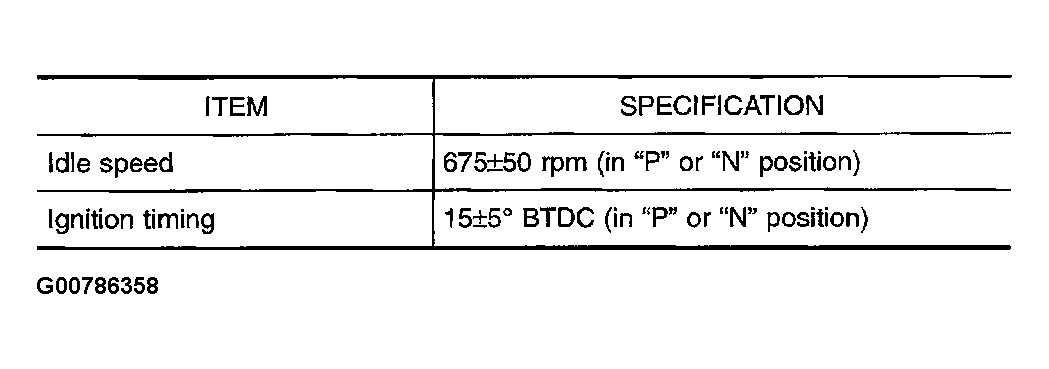

Fig 4: Idle Speed And Ignition Timing Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

NOTE:

It is better to count the time accurately with a clock.
It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a malfunction.
