2004 Infiniti I35FACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. CHECK OVERALL FUNCTION

    Check ASCD indicator under the following conditions.

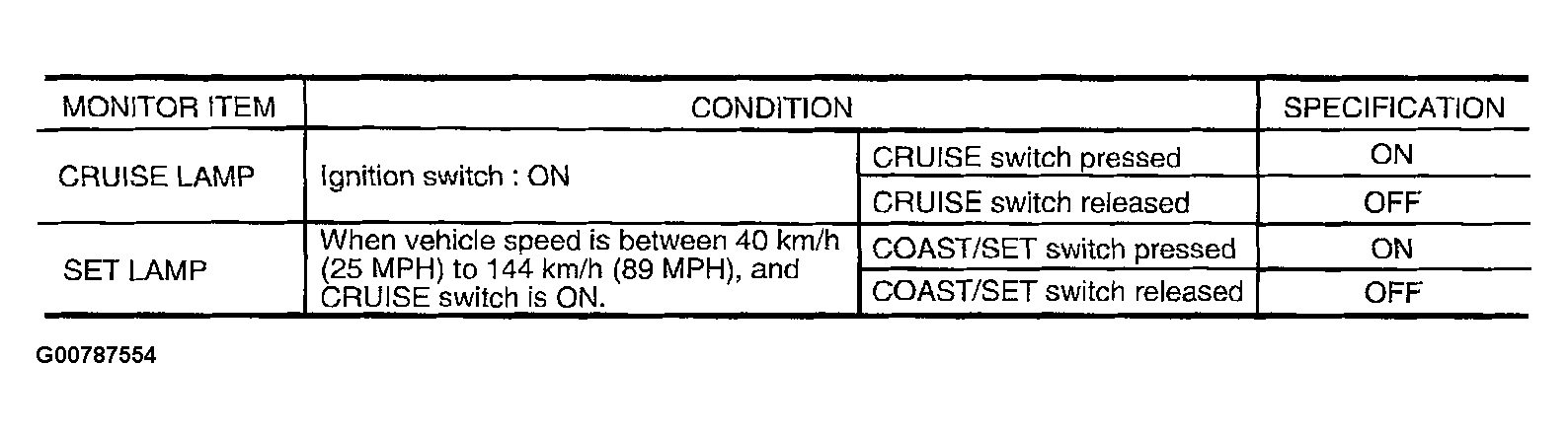

    Fig 1: ASCD Indicator Checking Specifications
    G00787554Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 2.
  2. CHECK COMBINATION METER OPERATION

    Check that combination meter operates normally.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Check combination meter circuit. Refer to WIRING DIAGRAM -- METER -- .
  3. CHECK INDICATOR CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between ECM terminals 24, 25 and ground with CONSULT-II or tester.

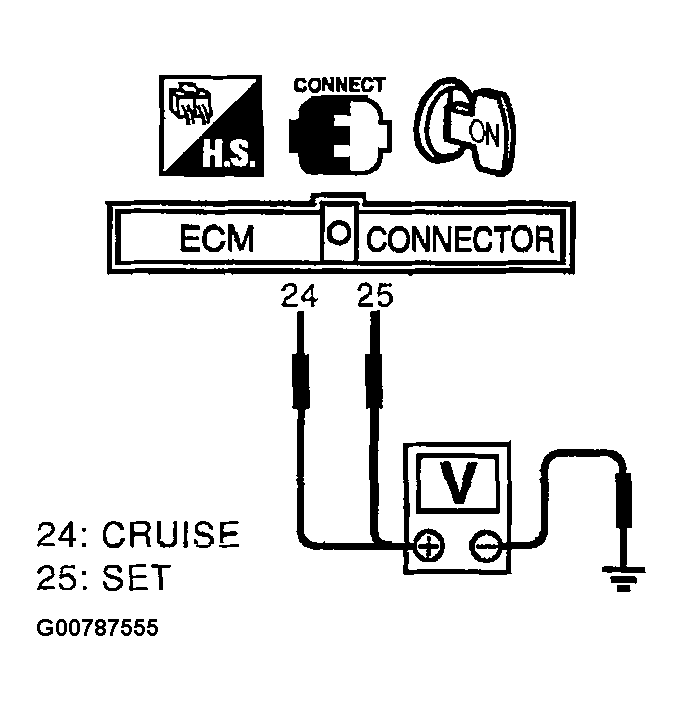

    Fig 2: Checking Voltage At ECM
    G00787555Courtesy of NISSAN MOTOR CO., U.S.A.

    Battery voltage should exist.

    OK or NG

    1. OK: GO TO  5 .
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F53, M223
    • Harness for open or short between combination meter and ECM
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

    1. : INSPECTION END
