Diagnostic Procedure
- Inspection Start

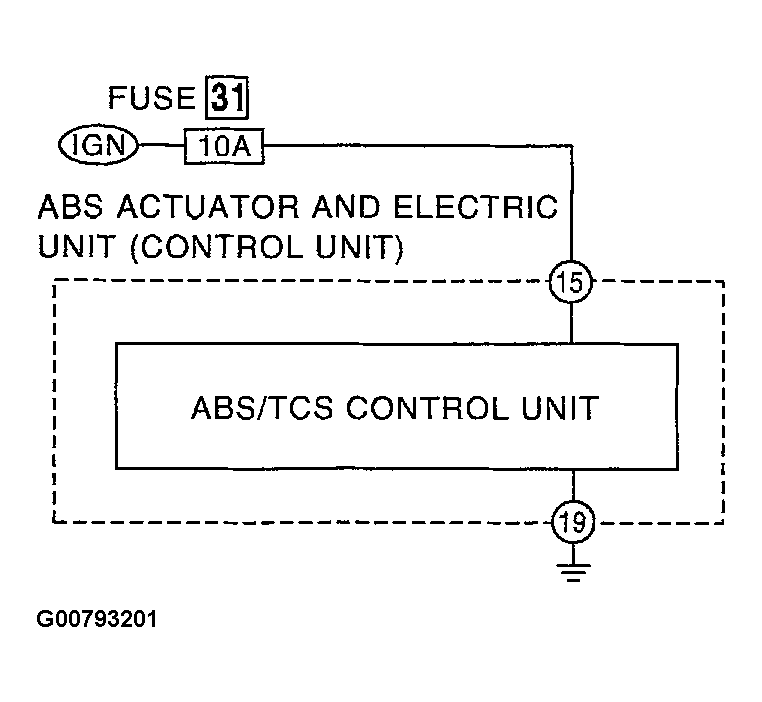

ABS actuator and electric unit (control unit) power supply and ground circuit inspection
GO TO 2.
- Check Connector
- Disconnect ABS actuator and electric unit (control unit) connector E162.
Check terminals for damage or loose connections. Then reconnect connectors.
- Carry out self-diagnosis again.
Does warning lamp activate again?
Yes: GO TO 3.
No: Inspection End
- Disconnect ABS actuator and electric unit (control unit) connector E162.
- Check ABS Actuator And Electric Unit (Control Unit) Power Supply Circuit
Check voltage. Refer to LOW VOLTAGE .
Does battery voltage exist when ignition switch is turned ON?
Yes: GO TO 4.
No: Repair.
- Check Warning Lamp Indication
Check "SELF DIAGNOSIS RESULTS", if "CONTROLLER FAILURE" is indicated on the screen.
Yes: Replace ABS actuator and electric unit (control unit).
No: Inspect the system according to the code No.
