2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

Disassembly And Assembly: Disassembly

Remove all parts from jacket tube assembly.

When remove tilt lever, perform as shown in the figure.

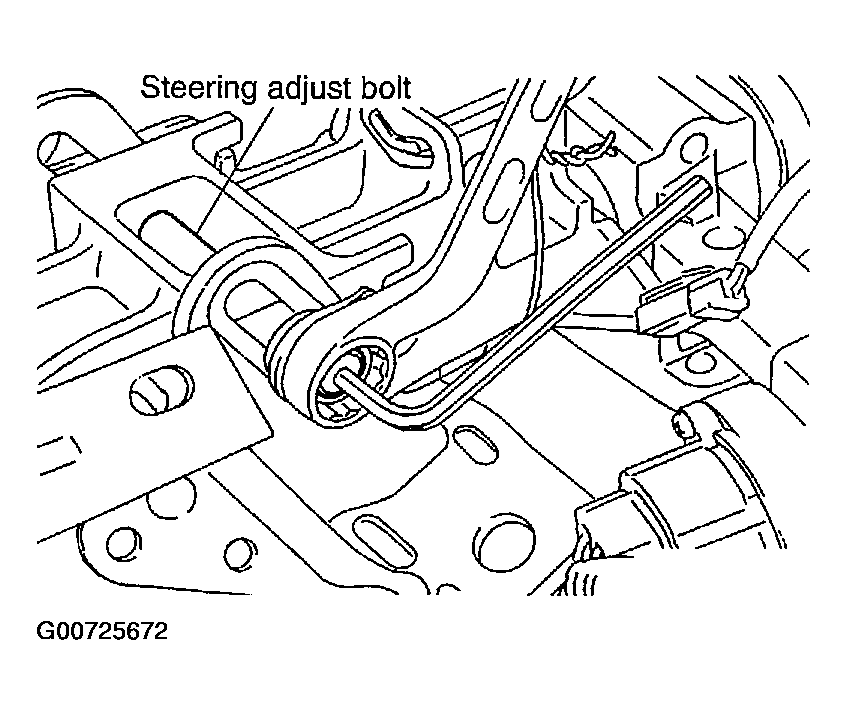

Fig 1: Locating Steering Adjust Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
When remove telescopic lever, perform as shown in the figure.

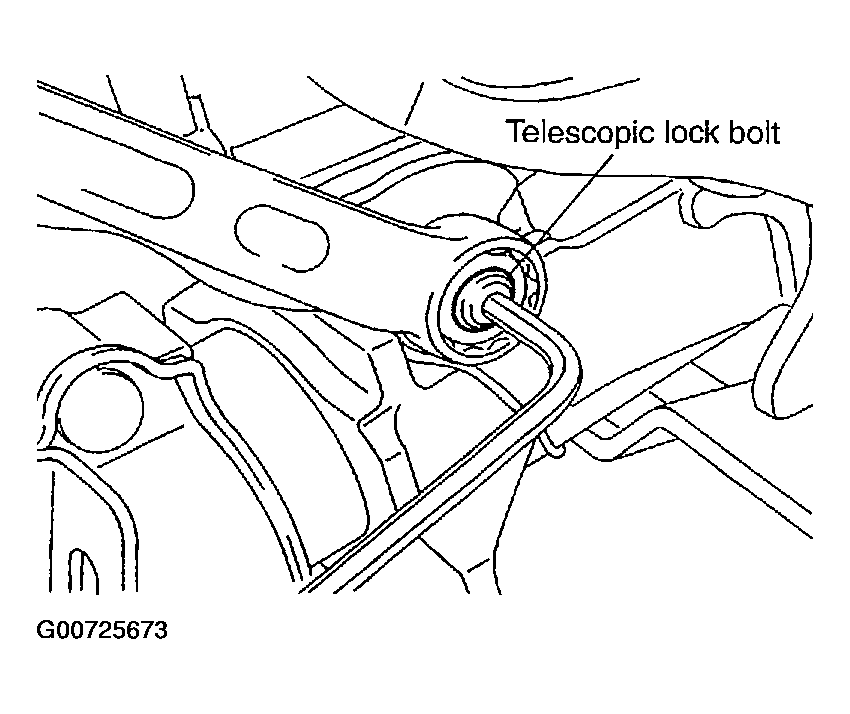

Fig 2: Locating Telescopic Lock Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.

Disassemble the parts from jacket tube. The parts to be disassembled are shown in the figure.
