VIAS Control Solenoid Valve
With CONSULT-II
- Reconnect harness connectors disconnected.
- Turn ignition switch ON.

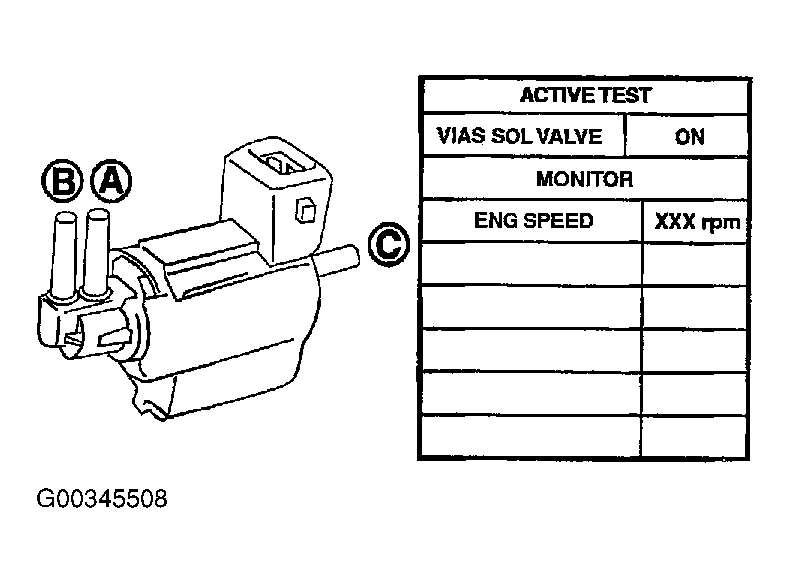

- Perform VIAS SOL VALVE in ACTIVE TEST mode.

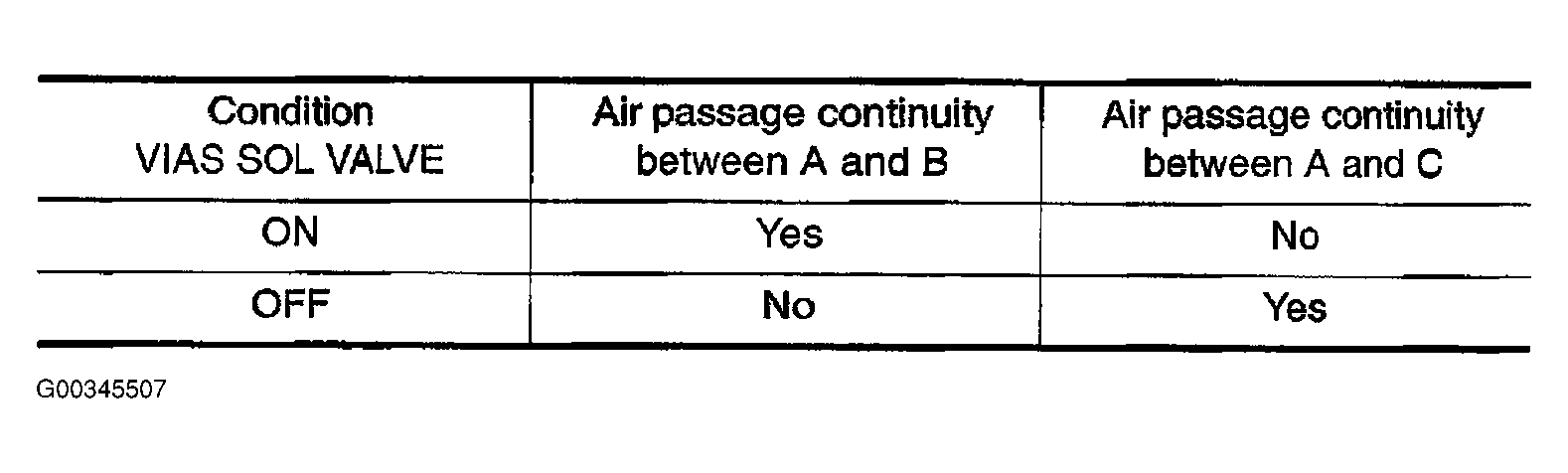

- Check air passage continuity and operation delay time under the following conditions.
Operation takes less than 1 second .
With GST

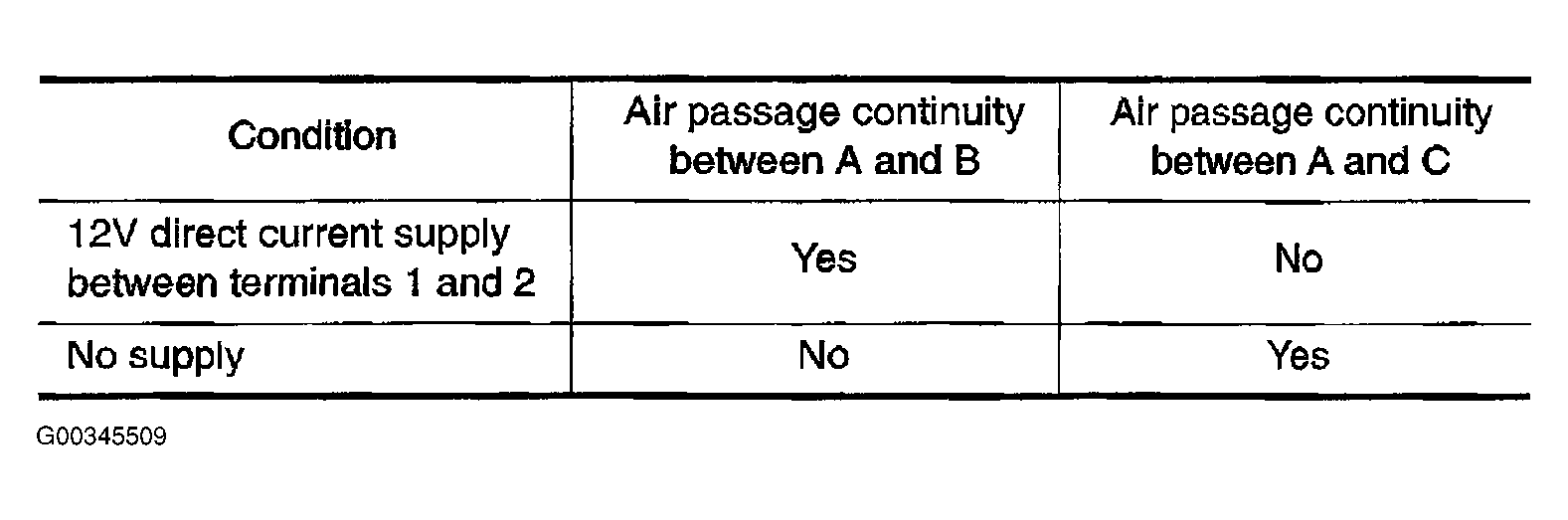

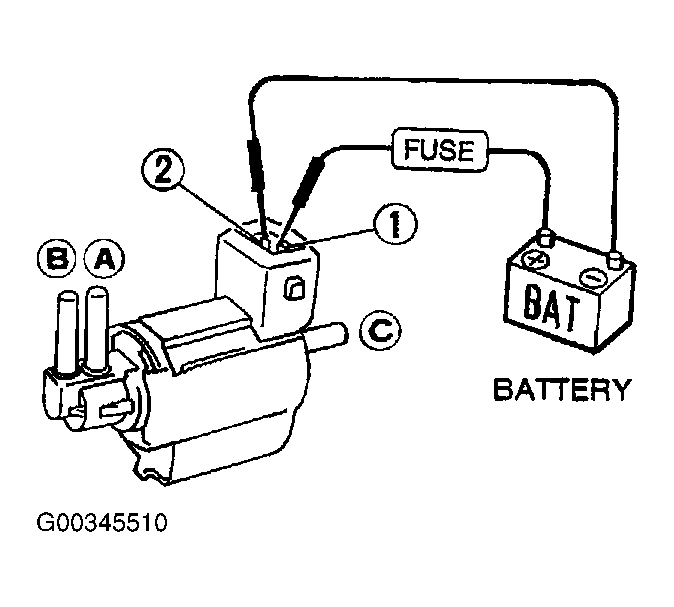

Check air passage continuity and operation delay time under the following conditions.
Operation takes less than 1 second .
