2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

ECM Terminals and Reference Value: Preparation

ECM is located behind the passenger side instrument lower panel. For this inspection, remove passenger side instrument lower panel.
Remove ECM harness connector.

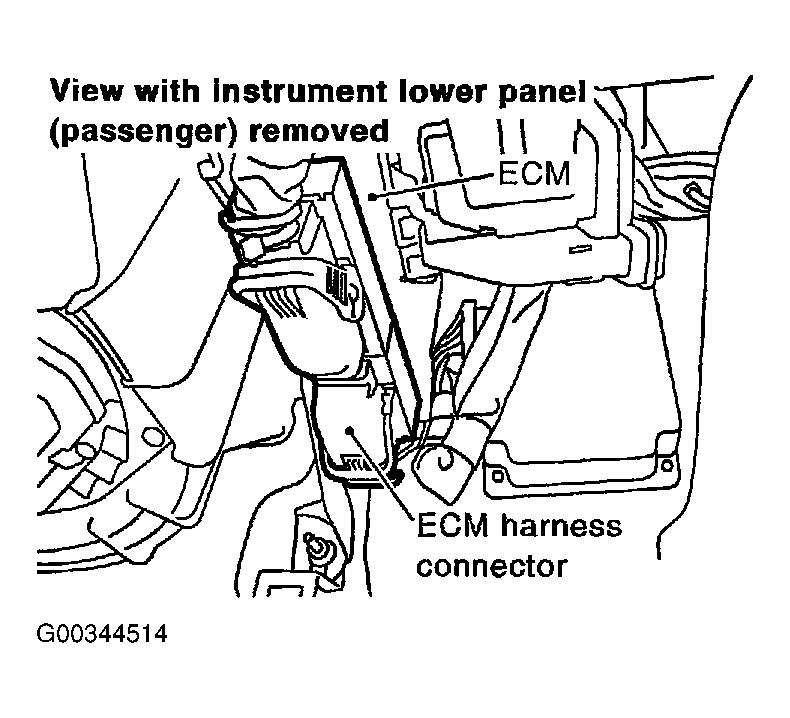

Fig 1: Locating ECM & ECM Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown in Fig 2 .
Connect a break-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.
- Use extreme care not to touch 2 pins at one time.
- Data is for comparison and may not be exact.

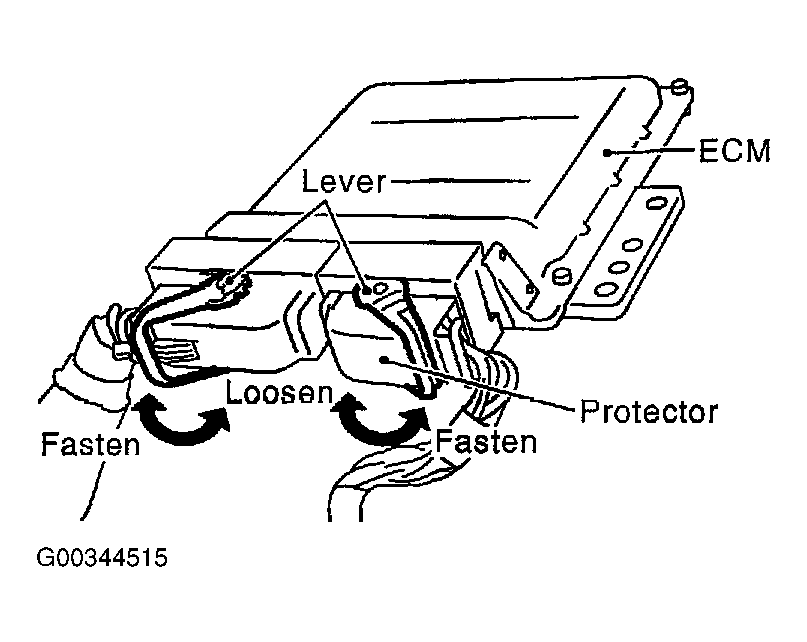

Fig 2: Loosening Levers & Disconnecting ECM Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
