Inspection Procedure
- Turn ignition switch OFF.

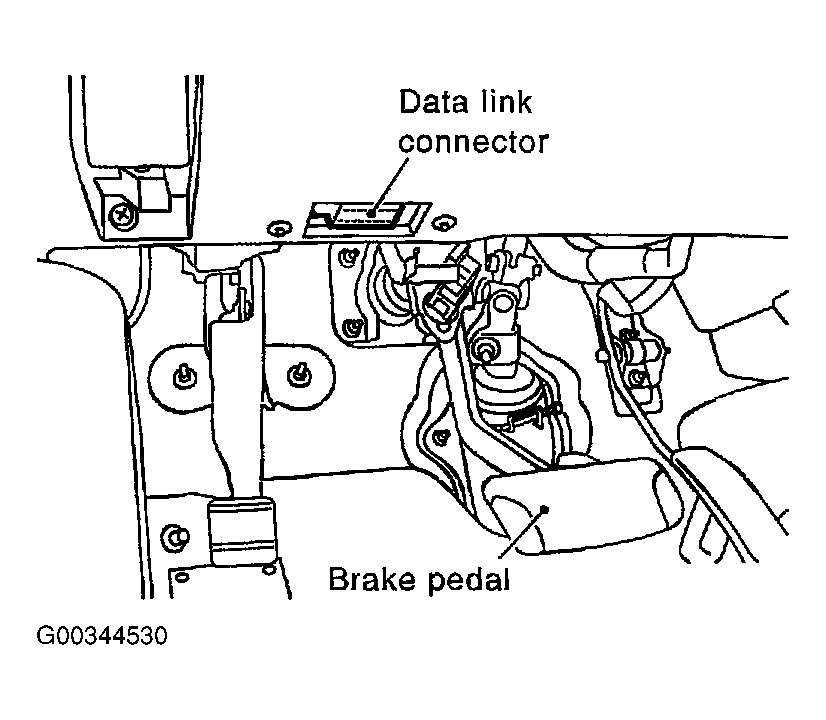

- Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the hood opener handle.
- Turn ignition switch ON.

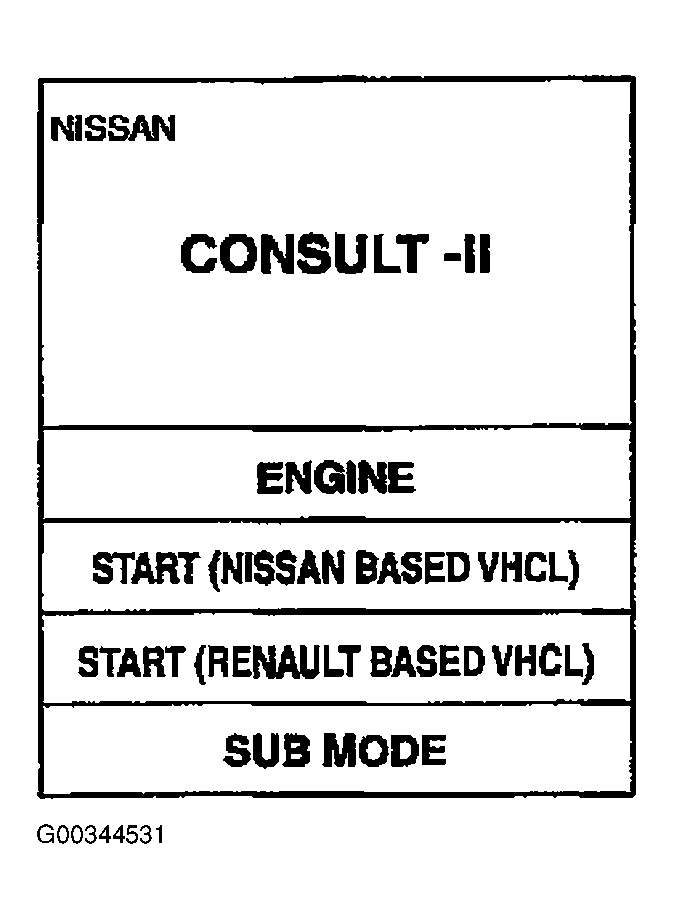

- Touch START (NISSAN BASED VHCL).

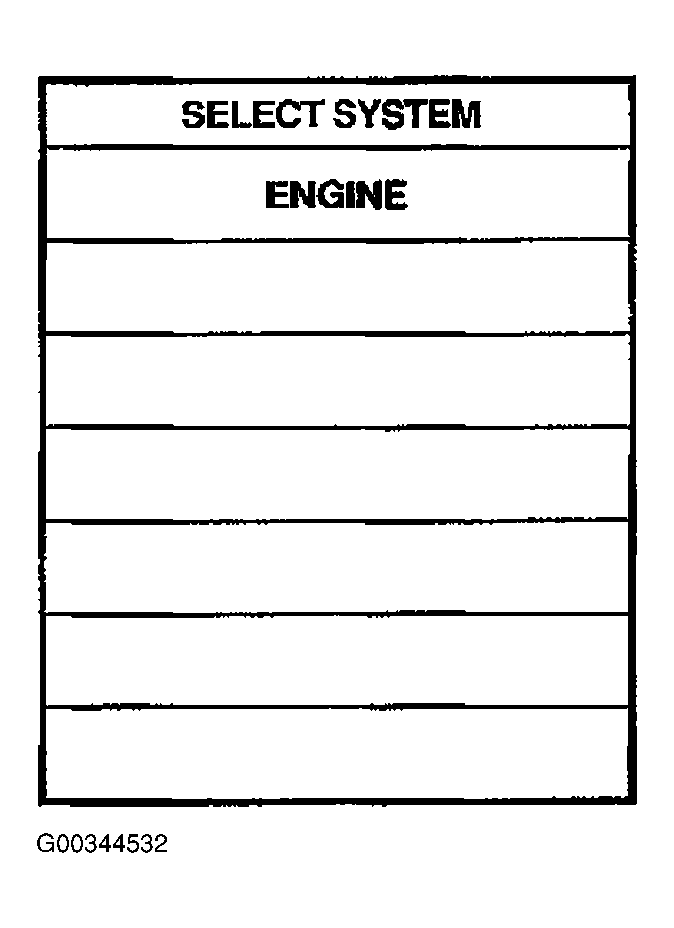

- Touch ENGINE.
If ENGINE is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

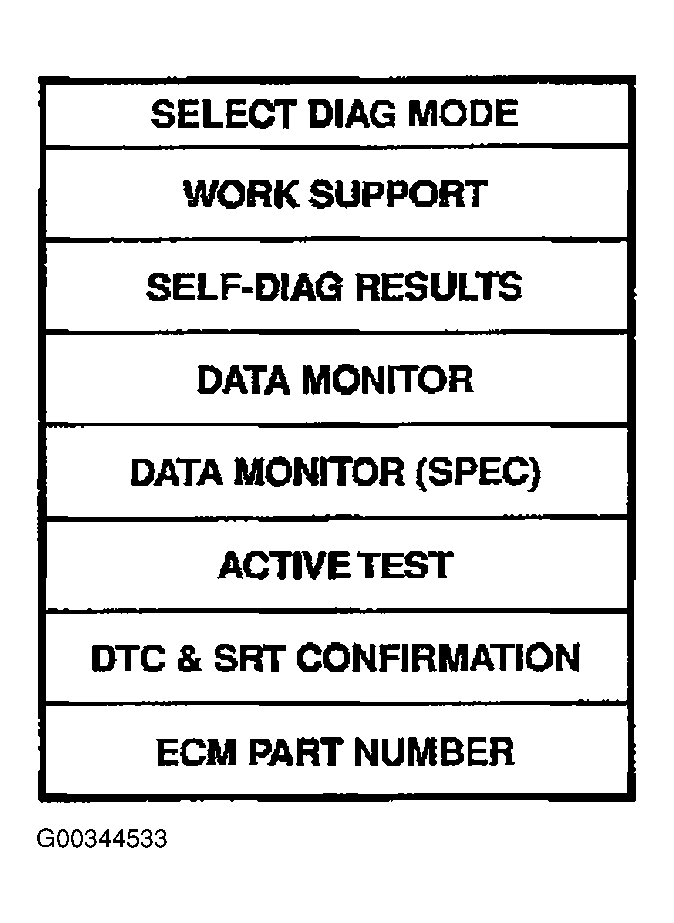

- Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual .
