2004 Infiniti FX45FACTORY OEM SERVICE PROCEDURE

Inspection Procedure

NOTE: Perform DATA MONITOR (SPEC) mode in maximum scale display.

Perform BASIC INSPECTION .

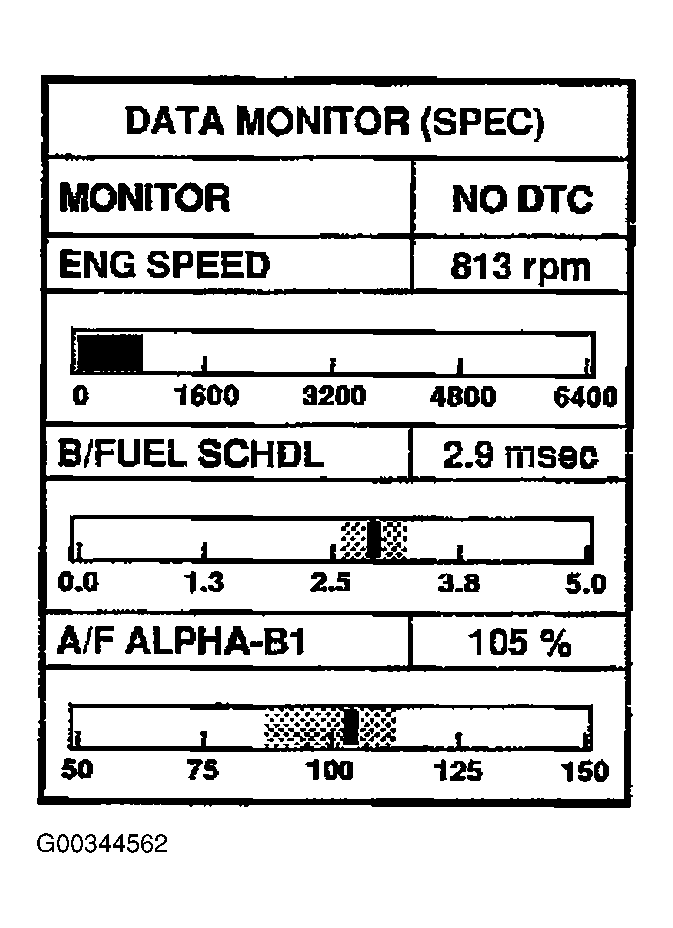

Fig 1: Displaying Data Monitor (SPEC) Mode For CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Confirm that the testing conditions indicated above are met.
Select B/FUEL SCHDL , A/F ALPHA-B1 , A/F ALPHA-B2 and MAS A/F SE-B1 in DATA MONITOR (SPEC) mode with CONSULT-II.
Make sure that monitor items are within the SP value.
If NG, go to DIAGNOSTIC PROCEDURE .
